IOLAN SCG LW Sichere Console Server mit WLAN- und Mobilfunkzugang

In-Band- und Out-of-Band-IT-Infrastruktur-Management

IOLAN SCG LW Console Server

IOLAN SCG LW Console Server

IOLAN SCG LW Console Server
  • 18, 34 oder 50 Console Management Ports
  • Modulares Design mit RS232 RJ45 und USB 3.0 Schnittstellen
  • 4G Hochgeschwindigkeits-LTE mit Sicherungsnetzwerken: HSPA+, UMTS, EDGE und GPRS/GSM
  • WLAN (Wi-Fi®): Dual-Band-Radio unterstützt IEEE 802.11 bei 2,4 GHz/5 GHz
  • Doppelte Netzwerkverbindung mit 10/100/1000Base-T Kupfer- und 100/1000Base-X LWL-SFP-Ports
  • AAA Security und SSH/SSL Verschlüsselung entsprechend Rechenzentrum Konformitäts Richtlinien
  • Dual AC Stromversorgung für fehlertolerante Verfügbarkeit
Angebot
Produkt Frage?
  • Übersicht
  • Features
  • Technische Daten
  • Anwendungen
  • Dokumentation
  • Bilder & Artikelnummer

Perle IOLAN SCG LW Console Server bieten Rechenzentrum-Managern ein sicheres Remote-Console-Management für Geräte mit RS232 RJ45- oder USB-Konsolenports. Mit einer erweiterbaren modularen Hardwareplattform, fortgeschrittenen Sicherheits- und integrierten Redundanzfunktionen verfügen IT-Mitarbeiter in Netwok Operations Centers (NOC) über alles, was sie benötigen, um ein sicheres Remote-Datencenter-Management und Out-of-Band-Management von IT-Assets überall auf der Welt zu gewährleisten. Das einzigartige Design bietet eine flexible und kostengünstige Lösung für die Datenübertragung von unternehmenskritischen Geräten über 4G LTE-Mobilfunknetzwerke und Wi-Fi WLAN-Netzwerke.

Console Management von IT-Assets mit erweiterbarer & modularer Hardware-Plattform

Der modulare IOLAN SCG LW Console Server unterstützt RS232 RJ45- und USB-Verbindungen mit Konsolenports auf Geräten wie Cisco routers, Switches, Firewalls, Servers (Solaris, Windows, Unix and Linux) PBX, Netzwerkspeichergeräten und Sicherheitsanwendungen über 4G LTE-Mobilfunk- oder über ein WLAN IP-Netzwerk. Jahrzehntelang war der höchst zuverlässige RS232 RJ45-Port der Standard für Administrator-Konsolenportzugriff. Heute bieten IT-Device-Hersteller wie Cisco, Juniper, Dell, HPE, Huawei und andere Geräte mit USB-Administrator-Konsolenports an. Das modulare Design des IOLAN SCG LW unterstützt beide Arten von Administrator-Ports in einer Konsolenmanagementlösung. Die Schnittstellenmodule ermöglichen dem Benutzer Austausch, Upgrade und Skalierung jeder passenden Kombinationen von 16-Port USB 3.0- oder RS232 RJ45-Schnittstellenmodulkarten. Der IOLAN SCG LW Console Server ist vollständig oder teilweise bestückt erhältlich, sodass Sie Module austauschen und hinzufügen können, wenn Ihre Anforderungen wachsen oder sich ändern.


IOLAN SCG-Schnittstellenoptionen


Der Perle IOLAN SCG ist die einzige am Markt erhältliche Lösung, die bis zu 50 USB 3.0-Ports unterstützen kann, die mit den USB-Lösungen aller Hersteller kompatibel sind.

Die RS232 RJ45-Ports sind per Software konfigurierbar und mit 'straight-thru' oder 'rolled' Kabeln für die Anbindung Ihrer Cisco-Geräte kompatibel. Außerdem kann ein DCD-Pin für Geräte von Drittanbietern konfiguriert werden, die dieses zusätzliche Signal benötigen. Damit unterstützt der Perle IOLAN SCG mehr serielle Geräte als jeder andere Console Server auf dem Markt. Damit unterstützt der Perle IOLAN SCG mehr serielle Geräte als jeder andere Console Server auf dem Markt.

Erweiterte Netzwerk-Sicherheitsfunktionen, Authentifizierung und Datenverschlüsselung

IT-Administratoren müssen dafür sorgen, dass die Übertragung von Netzwerkdaten und der Fernzugriff auf Konsolen-Administrationsports in IT-Geräten sicher sind. Beim Einsatz von IOLAN SCG Console Servern sind Datenmanagementinformationen durch Standard-Verschlüsselungstools wie Secure Shell (SSH) und Secure Sockets Layer (SSL) geschützt. Die Unterstützung von Authentifizierungsschemata wie RADIUS, TACACS+, LDAP, Kerberos, NIS und RSA Security SecurID-Tokens gewährleistet, dass der Zugriff auf Geräte und Daten nur autorisierten Benutzern vorbehalten bleibt.

Ein IOLAN SCG Console Server schützt sensible und vertrauliche Daten mittels führenden Verschlüsselungsstandards, bevor sie über ein firmeneigenes Intranet oder über das öffentliche Internet gesendet werden. Für die Kompatibilität mit Peer-Verschlüsselungsgeräten werden alle wichtigen Verschlüsselungsstandards wie AES, 3DES, RC4, RC2 und CAST128 vollständig unterstützt.

Der IPSec-Standard ist als die sicherste Methode zur Fernkommunikation mit privaten Netzwerken über das Internet anerkannt und bietet eine stabile Authentifizierung und Verschlüsselung von IP-Paketen auf der Vermittlungsschicht des DoD-Modells. Er eignet sich ideal als Standard für die Zusammenarbeit mehrerer Hersteller innerhalb eines Netzwerks und bietet Flexibilität sowie die Möglichkeit, die richtige Lösung für eine bestimmte Anwendung anzupassen.

Redundanzfunktionen für fehlertoleranten Netzwerkzugriff und Betriebszeit

Jeder IOLAN SCG LW Console Server verfügt über drei sichere Fernzugriffsmethoden für kritische Netzwerkgeräte.

  1. Das integrierte 4G Hochgeschwindigkeits-LTE mit HSPA+, UMTS, EDGE und GPRS/GSM-Sicherungsnetzwerken zum Schutz der Out-of-Band-Verwaltungsinfrastruktur Ihres Rechenzentrums und Ihrer Zweigstellen vor Ausfällen des Kabel-LAN. Darüber können auch serielle Daten übertragen oder eine direkte serielle/serielle Peer-Verbindung über Mobilfunknetzwerke hergestellt werden. Dies ist ideal für Geräte, die sich an Orten befinden, an denen keine Ethernet-Kabelverbindungen, aber Mobilfunknetze mit erschwinglichen Preisen für Datenpakete verfügbar sind.
  2. Der integrierte WLAN-Netzwerkzugang über Dualband-Funkantennen bietet optimale Funkleistung, Signalzuverlässigkeit und Reichweite. Dank einer breiten Unterstützung von WLAN-Technologien (IEEE 802.11 a,b,g,n bei 2,4 GHz/5 GHz) und schnellen Drahtlosgeschwindigkeiten von bis zu 150 MBit/s ist der IOLAN SCG LW ideal für den Zugriff auf wichtige Netzwerkgeräte.
  3. Sie können jede duale Kombination aus den beiden 10/100/1000Base-T Kupfer-Ports und den beiden 100/1000Base-X SFP LWL-Ports nutzen, um Ihre einzigartigen Netzwerkzugriffsanforderungen zu erfüllen. Dieses Design bietet eine flexible und kostengünstige Lösung für die Datenübertragung von unternehmenskritischen Geräten über Ethernet-Netzwerke auf Kupfer- oder LWL-Basis.

Bei der Verbindung mit einem LWL-Netzwerk ermöglichen die steckbaren SFP-Ports flexible Netzwerkkonfigurationen mit optischen SFP-Transceiver von Perle, Cisco oder anderen Herstellern von MSA-konformen SFPs. Dieses einzigartige fehlertolerante Design mit Redundant Path-Technologie, gewährleistet die Verfügbarkeit von Konsolenmanagement-Ports über Active Standby- oder Dual Network-Zugriffsmodi.

An jedem Konsolenport befindet sich zum Schutz vor elektrostatischen Entladungen und Stromstößen eine robuste 15Kv ESD-Schutzschaltung.

Zusätzlich sorgt Dual AC Stromversorgung dafür, dass Ihr IOLAN auch bei Ausfall der primären Stromversorgung in Betrieb bleibt.

Einfache Einrichtung und Konfiguration

Es ist unglaublich einfach, den IOLAN SCG LW im Netzwerk einzurichten und zu betreiben. Das Modul kann über das Netzwerk mit einer Vielzahl von Optionen konfiguriert werden, einschließlich Perle Easy Config Wizard, Perle Device Manager, WebManager, CLI, usw.

Bei Auslieferungen von Großaufträgen kann der Micro SD-Kartensteckplatz zum Sichern und Wiederherstellen von Konfigurationsdateien sowie zum Laden neuer Firmware genutzt werden. Perle ist bestrebt, die Konfigurationsprobleme aller IOLANs in Ihrem IP-Netzwerk zu beseitigen.

Flexible und zuverlässige Anbindungen an das Ethernet

IOLAN SCG Console Server stellen sich als ideal dar für den Anschluss auf serieller Technik basierender Einrichtungen wie COM-Ports, UDP- oder TCP-Sockets an Anwendungen im Fernzugriff. Perle’s Umleitungstreiber Software TruePort bietet fest stehende TTY- oder COM-Ports für Anwendungen auf serieller Basis, sodass die Kommunikation zu entfernten, an Device-Server von Perle angeschlossene Anwendungen entweder verschlüsselt oder im reinen Textmodus, erfolgen kann.

TrueSerial® Paket-Technologie bietet die authentischste serielle Verbindung über Ethernet zur Erhaltung der Integrität des seriellen Protokolls.

Sie können ferner serielle Daten zwischen den Geräten über ein IP-Netzwerk tunneln.

Mit der Entscheidung für einen Perle IOLAN SCG Console Server können Sie sicher sein, dass praktisch jedes Gerät mit einem seriellen COM-Port in Verbindung mit Ihrer gewünschten Anwendung genauso funktioniert, als wäre es direkt angeschlossen. Im unwahrscheinlichen Fall, dass der Perle IOLAN Console Server dies nicht standardmäßig aktiviert, bietet Perle „Device Plug-ins“ an, die vom Kunden installiert werden können.

Fortschrittliche IP-Technologie

Der IPv6 Standard findet in der Industrie immer größere Verbreitung. IOLAN SCG, mit Unterstützung von IPv6 bietet Organisationen hierdurch unübertroffenen Investitionsschutz.

Der Bedarf für IPv6 (welches vom Adress-Schema mit IPv4 kompatibel ist) wird weitgehend durch das Wachstum von IP-Addressen getrieben. Mit der Integration und dem Rollout von fortgeschrittlichen Mobilfunknetzen, wird eine robuste Methode benötigt, um eine schnelle Inbetriebnahme einer großen Anzahl von neuen IP-adressierbaren Geräten zu bewältigen. Das US-Verteidigungsministerium spezifiziert, daß alle zu beschaffenden EDV-Investitionen IPv6 konform sein müssen. Zudem bieten alle gängigen Betriebssysteme wie Linux, UNIX, Windows Solaris und auch Router bereits volle IPv6 Unterstützung.

Daher ist es wichtig, daß Endkunden und System-Integratoren nur Geräte einkaufen, die IPv6 unterstützen. Unsere IOLAN-Reihe mit eingebauter IPv6 Unterstützung ist daher die beste Wahl um serielle Geräte an das Ethernet anzubinden.

Weitere Gründe, welche die Wahl von IOLAN SCSG Console Server vereinfachen:

  • Datenübertragung über Mobilfunk mit bis zu 100Mbps
  • Direkte serielle/serielle Peer-Verbindung über Mobilfunknetzwerke
  • Konsolen-Fernverwaltung über Mobilfunknetzwerke
  • Bietet als Wireless Client-Proxy eine drahtlose Konnektivität auf zentrale Zugriffspunkte für serielle und Ethernet-Geräte
  • Kann über WLAN eine direkte seriell zu seriell Peer-Verbindung bereitstellen
  • Software Access Point (SoftAP) für bis zu 6 Wireless Clients.
  • Die schnelle wireless Roaming-Funktion ist ideal für mobile Anwendungen, bei denen der IOLAN transparent zwischen APs (Access Points) mit demselben ESS (Extended Service Set) roamen kann
  • FIPS 140-2– Kryptografische Module erfüllen die US-Regierungs-NIST-Konformität
  • Clustering– Ermöglicht Überblick über alle Out-of-Band-Konsolenports. Ideal für große Rechenzentren
  • Primäre/Backup-Host-Funktionalität ermöglicht automatische Herstellung von Verbindungen zu alternativen Hosts, falls die primäre TCP-Verbindung ausfallen sollte
  • EasyPort Web– Zugriff auf serielle Konsolenports über einen Java-fähigen Internetbrowser
  • Java-freier Browserzugriff auf serielle Remote-Konsolenports über Telnet und SSH
  • Dynamic DNS – Einfacher Konsolen-Management-Zugriff von jedem Ort über das Internet
  • Power Cycling enfernter Geräte mit Perle Remote Power Switchen
  • Ping-Watchdogsensoren ermöglichen dem Kunden das Aus- und Einschalten von Geräten mit angeschlossenen RPS-Power-Switches von Perle, falls Netzwerkeinrichtungen nicht mehr reagieren

Lebenslange Garantie

Alle IOLAN SCG Modelle haben Perles Gewährleistung auf Lebenszeit und werden vom besten Support und Service unterstützt. Seit 1976 hat Perle seinen Kunden Netzwerkprodukte geliefert, die die höchsten Ansprüche an Zuverlässigkeit, Leistung und Qualität befriedigen. Mit Perle IOLAN SCG ist es ganz einfach, neue Dienste und Geräte zu installieren und zu aktualisieren und gleichzeitig den Kapitaleinsatz zu minimieren.

Softwarefunktionen- IOLAN SCG LW Sichere Console Server

Serial Port Access
Connect directly using Telnet / SSH by port and IP address
Connect with EasyPort menu by Telnet / SSH
Use an internet browser to access with HTTP or secure HTTPS via EasyPort Web menu
Java-free browser access to remote serial console ports via Telnet and SSH
Ports can be assigned a specific IP address ( aliasing )
Multisession capability enables multiple users to access ports simultaneously
Multihost access enables multiple hosts/servers to share serial ports
Topology Support
Serial to 4G LTE cellular data networks with fallback networks - HSPA+, UMTS, EDGE and GPRS/GSM
Serial to WLAN
Ethernet to WLAN
Serial to Ethernet
Infrastructure ( to Access Point ) and secure peer to peer using SoftAP ( vs legacy “Ad-Hoc” )
Accessibility
In-band and out-of-band Ethernet via RJ45 copper (10/100/1000 Base-T) and SFP fiber (100/1000Base-X)
In-band and out-of-band via integrated LTE, HSPA+, UMTS, EDGE and GPRS/GSM support
In-band and out-of-band via integrated IEEE 802.11 a,b,g,n,i WLAN (Wi-Fi ®)
Easy setup with Front Panel Display and Keyboard
Dynamic DNS enables users to find a console server from anywhere on the Internet
Domain name control through DHCP option 81
IPV6 and IPV4 addressing support
Availability
Primary/Backup host functionality enables automatic connections to alternate host(s)
Security
SSH v1 and v2
PCI DSS Compliance: TLS v1.2, TLS v1.1, TLS v1.0, SSL v3.0, SSL v2.0
SSL Server and SSL client mode capability
SSL Peer authentication
IPSec VPN : NAT Traversal, ESP authentication protocol
SSH ciphers: AES-CTR, AES-GCM and ChaCha20-poly1305
SSL encryption: AES-GCM, key exchange ECDH-ECDSA, HMAC SHA256, SHA384
Encryption: AES (256/192/128), 3DES, DES, Blowfish, CAST128, ARCFOUR(RC4), ARCTWO(RC2)
Hashing Algorithms: MD5, SHA-1, RIPEMD160, SHA1-96, and MD5-96
Key exchange: RSA, EDH-RSA, EDH-DSS, ADH
X.509 Certificate verification: RSA, DSA
Certificate authority (CA) list
Wireless LAN : WPA-PSK, WPA2-PSK & Enterprise ( EAP, PEAP, LEAP ), WEP, IEEE 802.11i, IEEE 802.1x supplicant
Local database
RADIUS Authentication, Authorization and Accounting
TACACS+ Authentication, Authorization and Accounting
LDAP, NIS, Kerberos Authentication
RSA SecureID-agent or via RADIUS Authentication
SNMP v3 Authentication and Encryption support
IP Address filtering
Disable unused daemons
Active Directory via LDAP
Terminal Server
Telnet
SSH v1 and v2
Rlogin
Auto session login
LPD, RCP printer
MOTD - Message of the day
Serial machine to Ethernet
Tunnel raw serial data across Ethernet - clear or encrypted
Raw serial data over TCP/IP
Raw serial data over UDP
Serial data control of packetized data
Share serial ports with multiple hosts/servers
Virtual modem simulates a modem connection - assign IP address by AT phone number
Virtual modem data can be sent over the Ethernet link with or without SSL encryption
TruePort com/tty redirector for serial based applications on Windows, Linux, Solaris, SCO HP UX, NCR UNIX and AIX. Perle supports the most comprehensive driver set in the industry. For a complete list of all the latest drivers click here
TrueSerial packet technology provides the most authentic serial connections across Ethernet ensuring serial protocol integrity
RFC 2217 standard for transport of serial data and RS232 control signals
Customizable or fixed serial baud rates
Plug-ins allow customer or Perle provided plug-ins for special applications
Software Development Kit ( SDK ) available
Serial encapsulation of industrial protocols such as ModBus, DNP3 and IEC-870-5-101
ModBus TCP gateway enables serial Modbus ASCII/RTU device connection to ModBus TCP
Data logging will store serial data received when no active TCP session and forward to network peer once session re-established - 32K bytes circular per port
Console Management
Sun / Oracle Solaris Break Safe
Local port buffer viewing - 256K bytes per port
External port buffering via NFS, encrypted NFS and Syslog
Event notification
Manage AC power of external equipment using Perle RPS power management products
Clustering - central console server enables access ports across multiple console servers
Windows Server 2003/2008 EMS - SAC support GUI access to text-based Special Administrative Console
Ping watchdog probes enable customers to power cycle equipment with attached Perle RPS power switches in the event of an unresponsive networking gear
Remote Access
Dial, direct serial PPP, PAP/CHAP, SLIP
  HTTP tunneling enables firewall-safe access to remote serial devices across the internet
Automatic DNS Update Utilize DHCP Opt 81 to set IOLAN domain name for easy name management and with Dynamic DNS support , users on the Internet can access the device server by name without having to know its IP address. See Automatic DNS update support for details
IPSEC VPN client/servers Microsoft L2TP/IPSEC VPN client ( native to Windows XP)
Microsoft IPSEC VPN Client ( native to Windows Vista )
Cisco routers with IPSEC VPN feature set
Perle IOLAN SDS, SDG, STS, STG, SCS and SCG models
OA&M ( Operations, Administration and Management )
WiFi Protected Setup ( WPS )
SNMP V3 - read and write, Perle MIB
Syslog
Perle Device Manager - Windows based utility for large scale deployments
Configurable default configuration
Installation Wizard
Set a Personalized Factory Default for your IOLANs
Protocols
IPv6, IPv4, TCP/IP, Reverse SSH, SSH, SSL, IPSec/IPv4, IPSec/IPv6, L2TP/IPSec, CIDR, RIPV2/MD5, ARP, RARP, UDP, UDP Multicast, ICMP, BOOTP, DHCP, TFTP, SFTP, SNTP, Telnet, raw, reverse Telnet, LPD, RCP, DNS, Dynamic DNS, WINS, HTTP, HTTPS, SMTP, SNMPV3, PPP, PAP/CHAP, SLIP, CSLIP, RFC2217, MSCHAP

Hardware-Spezifikationen - IOLAN SCG LW Sichere Console Server

Processor 1750 MIPS, 500 MHz core 32 bit ARM processor, with integrated hardware encryption processor
Memory
RAM MB 1000
Flash MB 4000
Interface Ports
Integrated Device Management Ports 2 x USB 3.0
Modular Device Management Ports IOLAN SCG18:
  • 16 x RS232 RJ45 or
  • 16 x USB 3.0
IOLAN SCG34:
  • 32 x RS232 RJ45 or
  • 32 x USB 3.0 or
  • 16 x RS232 RJ45 and 16 x USB 3.0
IOLAN SCG50:
  • 48 x RS232 RJ45 or
  • 48 x USB 3.0 or
  • 16 x RS232 RJ45 and 32 x USB 3.0
  • 32 x RS232 RJ45 and 16 x USB 3.0
Each chassis can be expanded or modified with an optional 16-port Interface card with either RS232 RJ45 ports or USB 3.0 ports
Sun / Solaris Sun / Oracle ‘Solaris' Safe - no "break signal" sent during power cycle causing costly server re-boots or downtime
Serial Port Speeds 50bps to 230Kbps with customizable baud rate support
Data Bits Configurable for 5,6,7 or 8-bit protocol support
Use TruePort to transparently pass 9-bit serial data
Parity Odd, Even, Mark, Space, None
Flow Control Hardware, Software, Both, None
Serial Port Protection 15Kv Electrostatic Discharge Protection (ESD)
Local Console Ports 1 x RS232 RJ45
1 x Micro USB with DB9 adapter
Network 2 x 10/100/1000Base-T RJ45 Copper
2 x 100/1000Base-X Fiber SFP Ports
Note: Any combination of two network ports can be used.
Software selectable Ethernet speed 10/100/1000, Auto
Software selectable Half/Full/Auto duplex
Micro SD Card slot Yes
Ethernet Isolation 1.5Kv Magnetic Isolation
Integrated Wireless Access
WLAN (Wi-Fi ®) IEEE 802.11 a,b,g,n,i
Wireless Topology Infrastructure (AP) and Peer to Peer- (SoftAP) modes
Wireless Radio Dual-Band Radio ; 2.4GHz and 5GHz 20, 40Mhz SISO 2.4-GHz
Wireless Data Rates 802.11n: 15, 30, 45, 60, 90, 120, 135, 150 Mbps (40Mhz channel @ 400ns Short GI)
802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b: 1, 2, 5.5, 11 Mbps
Operational Frequency Range (MHz) 2412 to 2484 MHz
4910 to 5825 MHz
Modulation DSSS, CCK, OFDM, BPSK, QPSK, 16-QAM, 64-QAM
Wireless Receiver Sensitivity in dBm (2.4Ghz SISO) 802.11b/g (20 MHz channel)
1 Mbps: -95.0
2 Mbps: -92.0
5.5 Mbps: -89.2
6 Mbps: -91.0
9 Mbps: -89.0
11 Mbps: -86.3
12 Mbps: -88.0
18 Mbps: -85.5
24 Mbps: -82.5
36 Mbps: -79.0
48 Mbps: -74.0
54 Mbps: -72.7
802.11n (20 MHz channel) @ 400ns GI
7.2 Mbps (MCS0): -89.3
14.4 Mbps (MCS1): -86.5
21.7 Mbps (MCS2): -84.5
28.9 Mbps (MCS3): -81.5
43.3 Mbps (MCS4): -78.0
57.8 Mbps (MCS5): -73.5
65.0 Mbps (MCS6): - 71.5
72.2 Mbps (MCS7): -70.0
802.11n (40 MHz channel) @ 400ns GI
15.0 Mbps (MCS0): -89.3
30.0 Mbps (MCS1): -86.5
45.0 Mbps (MCS2): -84.5
60.0 Mbps (MCS3): -81.5
90.0 Mbps (MCS4): -78.0
120.0 Mbps (MCS5): -73.5
135.0 Mbps (MCS6): - 71.5
150.0 Mbps (MCS7): -70.0
Wireless Transmit Power in dBm (2.4Ghz SISO) (20 MHz channel)
1 Mbps: 16.0
2 Mbps: 16.0
5.5 Mbps: 16.0
6 Mbps: 16.5
9 Mbps: 16.5
11 Mbps: 16.0
12 Mbps: 16.5
18 Mbps: 16.5
24 Mbps: 16.5
36 Mbps: 15.2
48 Mbps: 14.3
54 Mbps: 13.5
MCS0 : 16.0
MCS1 : 16.0
MCS2 : 16.0
MCS3 : 16.0
MCS4 : 15.2
MCS5 : 14.3
MCS6 : 13.5
MCS7 : 12.6
(40 MHz channel)
MCS0 : 14.0
MCS7 : 11.8
Wireless Receiver Sensitivity in dBm (5Ghz SISO) 802.11a
6 Mbps: -92.5
9 Mbps: -90.5
12 Mbps: -90.0
18 Mbps: -87.5
24 Mbps: -84.5
36 Mbps: -81.0
48 Mbps: -76.5
54 Mbps: -74.6
802.11n (20MHz channel) @ 400ns GI
7.2 Mbps (MCS0): -91.4
14.4 Mbps (MCS1): -88.0
21.7 Mbps (MCS2): -86.0
28.9 Mbps (MCS3): -83.0
43.3 Mbps (MCS4): -79.8
57.8 Mbps (MCS5): -75.5
65.0 Mbps (MCS6): - 74.0
72.2 Mbps (MCS7): -72.4
802.11n (40MHz channel) @ 400ns GI
15.0 Mbps (MCS0): -88.5
150.0 Mbps (MCS7): -69.3
Wireless Transmit Power in dBm (5Ghz SISO) 802.11a
6 Mbps: 18.0
9 Mbps: 18.0
12 Mbps: 18.0
18 Mbps: 18.0
24 Mbps: 17.4
36 Mbps: 16.5
48 Mbps: 15.8
54 Mbps: 14.5
802.11n (HT20) @ 400ns GI
7.2 Mbps (MCS0): 18.0
14.4 Mbps (MCS1): 18.0
21.7 Mbps (MCS2): 18.0
28.9 Mbps (MCS3): 18.0
43.3 Mbps (MCS4): 16.5
57.8 Mbps (MCS5): 15.8
65.0 Mbps (MCS6): 14.5
72.2 Mbps (MCS7): 12.0
802.11n (HT40) @ 400ns GI
15.0 Mbps (MCS0): 16.5
150.0 Mbps (MCS7): 12.0
Short Guard Interval (SGI) 800ns and 400ns (Short Guard Interval)
Wireless Antenna Dual-band 2.4/5.0 GHz, Omni-directional, Dipole antenna, 50 Ohm, 2 dBi, black with RP-SMA / RSMA finger tighten connector. Same antenna can be used as Main and/or Diversity for increased wireless performance, signal reliability, and extended range.
Maximal Ratio Combining (MRC), Rx Diversity 2.4 GHz MRC support for up to 1.4 Extended Range and 5 GHz Diversity Capable
Wireless Security WEP, WPA-PSK, WPA2-PSK & Enterprise (EAP, PEAP, LEAP), 802.11i (includes hardware-accelerated Advanced Encryption Standard [AES]), 802.1x supplicant
Fast Wireless Roaming Ideal for mobile applications, the IOLAN can transparently roam between APs (Access Points) that share the same ESS (Extended Service Set)
WiFi Protected Setup (WPS V2) A plug and play set up feature where the IOLAN can easily connect to a WPS capable central access pointor SoftAP compliant device supporting WPS
Integrated Cellular Access
  4G LTE with fallback networks - HSPA+, UMTS, EDGE and GPRS
Antennae (Included) Two multiband swivel-mount dipole antennae - SMA connectors
Cellular Data Rates 4G LTE (Cat. 3)
DL: max. 100 Mbps, UL: max. 50 Mbps HSPA+ DL Cat.24
DL: max. 42 Mbps, UL: max. 5.76 Mbps EDGE Class 12 data rates
DL: max. 237 kbps, UL: max. 237 kbps GPRS Class 12 data rates
DL: max. 85.6 kbps, UL: max. 85.6 kbps
SIM Card slot (empty) Accepts Micro SIM (3FF) as per reference standards:
ETSI TS 102 221 V9.0.0, Mini-UICC
The SIM card must be obtained by the user from their carrier of choice
Power
Power Supply Dual AC power supply
USA Models: IEC320-C13 to NEMA 5-15P line cord
UK Models: IEC320-C13 to BS1363 line cord
EU Models: IEC320-C13 to CEE 7/7 Schuko
South Africa Models: IEC320-C13 to BS546 line cord
Australia Models: IEC320-C13 to AS3112 line cord
Nominal Input Voltage 110/230v AC
Input Voltage Range 100-240v AC
AC Input Frequency 47-63Hz
Current Consumption @ 100v (Amps) IOLAN SCG18: 0.21
IOLAN SCG34: 0.27
IOLAN SCG50: 0.33
Current Consumption @ 240v (Amps) IOLAN SCG18: 0.09
IOLAN SCG34: 0.12
IOLAN SCG50: 0.14
Typical Power Consumption (Watts) 20.5 Watts
Note: USB cards can use an additional power of 2.5 Watts per port up to a max of 8 Watts total
Power Line Protection Fast transients: 1 KV (EN61000-4-4 Criteria B)
Surge: 2KV (EN61000-4-5 common mode), 1KV (EN61000-4-5 differential and common modes)
Front Panel LCD Display and Keyboard Indicators
  Network Link Activity
Serial Tx/Rx data per port
LED Indicators
  System Ready
Network Link Activity
Environmental Specifications
Heat Output (BTU/HR) IOLAN SCG18: 69.95
IOLAN SCG34: 92.13
IOLAN SCG50: 114.31
MTBF (Hours) 73,722

Calculation model based on MIL-HDBK-217-FN2 @ 30 °C

Operating Temperature 0°C to 55°C, 32°F to 131°F
Storage Temperature -40°C to 85°C, -40°F to 185°F
Humidity 5 to 95% (non condensing) for both storage and operation.
Case SECC Zinc plated sheet metal (1 mm)
Ingress Protection Rating IP30
Mounting 1U - 19" rack, front and rear mounting hardware included
Product Weight and Dimensions
Product Weight IOLAN SCG18: 3.33 kg / 7.34 lbs
IOLAN SCG34: 3.50 kg / 7.72 lbs
IOLAN SCG50: 3.67 kg / 8.09 lbs
Dimensions 1U Rack form factor - 26.4 x 43.4 x 4.4 (cm), 10.38 x 17.1 x 1.75 (in)
Packaging
Shipping Dimensions 59 x 36 x 9cm
Shipping Weight IOLAN SCG18: 4.27 kg / 9.41 lbs
IOLAN SCG34: 4.44 kg / 9.79 lbs
IOLAN SCG50: 4.61 kg / 10.16 lbs
Regulatory Approvals
Emissions FCC 47 Part 15 Subpart B Class A
ICES-003 (Canada)
EN55011 (CISPR11)
EN55032 (CISPR32)
EN61000-3-2 Limits for Harmonic Current Emissions
EN61000-3-3 Limits of Voltage Fluctuations and Flicker
Immunity EN55024
EN 61000-4-2 (ESD): Contact:
EN 61000-4-3 (RS):
EN 61000-4-4 (EFT):
EN 61000-4-5 (Surge):
EN 61000-4-6 (CS):
EN 61000-4-8 (PFMF)
EN 61000-4-11
Safety UL/ULC/EN 62368-1 (previously 60950-1)
CAN/CSA C22.2 No. 62368-1-15
Carrier Specific Approval IOLAN SCG LA: Auto-detecting
Verizon Certified
AT&T Certified
IOLAN SCG LE: not required
Cellular Radio EN 301 908-1
EN 301 908-2
EN 301 511
47 CFR Part 22
47 CFR Part 24
EN 301 908-13
Cellular Data Technologies Supported IOLAN SCG LA:
- Penta Band LTE: 700/700/850/AWS (1700/2100)/1900 MHz; FDD-Band (13,17,5,4,2)
- Tri Band UMTS (WCDMA): 850/AWS (1700/2100)/1900 MHz; FDD-Band (5,4,2)
- Quad Band GSM/GPRS/EDGE: 850/900/1800/1900 MHz
IOLAN SCG LE:
- Penta Band LTE: 800/900/1800/2100/2600 MHz;
- FDD-Band (20,8,3,7,1); Tri Band UMTS (WCDMA):
- 900/1800/2100 MHz; FDD-Band (8,3,1);
- Dual Band GSM/GPRS/EDGE: 900/1800 MH
Wireless Regulatory Domain FCC/ICES
ETSI
TELEC
Users are responsible for verifying approval for use in their individual countries.
Radio Approvals FCC Part 15.247 Subpart C (2.4 Ghz)
FCC Part 15.407 Subpart E (5 Ghz)
RSS-210 (Canada), RSS-Gen Issue 2 (Canada), ICES-003 Issue 4
ETSI EN 301 489-1 (V1.9.2)
ETSI EN 301 489-17 (V2.2.1)
ETSI EN 300 328 (V1.8.1)
ETSI EN 301 893 (V1.7.1)
Frequency Bands FCC / ICES
2.412 to 2.462 GHz; 11 channels
5.180 to 5.320 GHz; 8 channels
5.500 to 5.700 GHz, 8 channels (excluding 5.600 to 5.640 GHz)
5.745 to 5.825 GHz; 5 channels
ETSI
2.412 to 2.472 GHz; 13 channels
5.180 to 5.320 GHz; 8 channels
5.500 to 5.700 GHz; 8 channels (excluding 5.600 to 5.640 GHz)
MIC (formally TELEC)
2.412 to 2.472 GHz; 13 channels
4.920 to 4.980 GHz; 4 channels
5.030 to 5.091 GHz; 3 channels
5.180 to 5.240 GHz; 8 channels
5.500 to 5.700 GHz; 11 channels
Other Reach, RoHS and WEEE Compliant
CCATS - G168387
ECCN - 5A992
HTSUS Number: 8517.62.0020
Perle Limited Lifetime warranty

IOLAN RJ45 Serial Connector Pinout - DCE mode (Straight-through)

RJ45 SocketRJ45 Socket

Pinout Direction EIA-232
1 in CTS
2 in DSR
3 in RxD
4   GND
5   not used
6 out TxD
7 out DTR
8 out RTS

Optional Perle adapters for use with straight thru CAT5 cabling


IOLAN RJ45 Serial Connector Pinout - DTE mode (Rolled)

RJ45 SocketRJ45 Socket

Pinout Direction EIA-232
1 out RTS
2 out DTR
3 out TxD
4   GND
5 in DCD
6 in RxD
7 in DSR
8 in CTS
(A rolled RJ45 cable will automatically perform DTE to DCE crossover)
Data Center Console Management

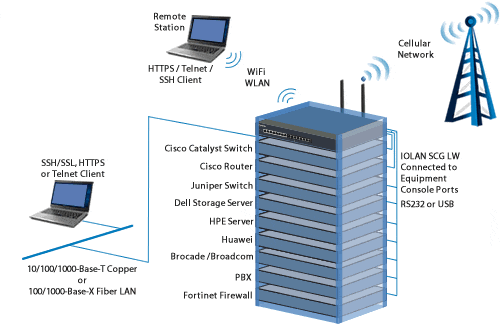

IOLAN SCG W Remote Console Management

IOLAN SCG W Remote Console Management

IOLAN SCG W Remote Console Management

TCP

Using RAW TCP Sockets

A raw TCP socket connection which can be initiated from the serial-Ethernet device or from the remote host/server. This can either be on a point to point or shared basis where a serial device can be shared amongst multiple devices. TCP sessions can be initiated either from the TCP server application or from thePerle IOLAN serial-Ethernet adapter.

diagram-tcp
UDP

Using Raw UDP Sockets

For use with UDP based applications, Perle IOLANs can convert serial equipment data for transport across UDP packets either on a point to point basis or shared across multiple devices.

diagram-udp
Console Server

Console Management

For access to remote console ports on routers, switches,etc, Perle IOLAN’s enable administrators secure access to these RS232 ports via inband Reverse Telnet / SSH or out of band with dial-up modems. Perle IOLAN models with integrated modems are available.

diagram console
COM/TTY

Connect Serial-based Applications with a COM/TTY Port Driver

Serial ports can be connected to network servers or workstations running Perle's TruePort software operating as a virtual COM port. Sessions can be initiated either from the Perle IOLAN or from TruePort.

diagram com tty
Tunneling

Serial Tunneling between two Serial Devices

Serial Tunneling enables you to establish a link across Ethernet to a serial port on another IOLAN. Both IOLAN serial ports must be configured for Serial Tunneling (typically one serial port is configured as a Tunnel Server and the other serial port as a Tunnel Client).

diagram tunneling
Virtual Modem

Virtual Modem

Enables the serial-Ethernet adapter to simulate a modem connection. When connected to the IOLAN and initiates a modem connection, the IOLAN starts up a TCP connection to another IOLAN serial-Ethernet adapter configured with a Virtual Modem serial port or to a host running a TCP application.

diagram modem
Seitenanfang

Produkte

Anwendungen

Über Perle

Kontakt

Vertrieb

Technischer Support

Site Map

Rechtliche Hinweise

Cookies & Datenschutz

Produkte von Perle

specialix Chase Research

Besuchen Sie uns

Copyright © 1996 - 2021 Perle. Alle Rechte vorbehalten

×

Perle Kunden

  • Amazon
  • Cisco
  • Boeing
  • Daimler

Warum Perle?

Technical Support icon
Technischer Support

Mitarbeiter aus dem Vertrieb und technischen Bereich, stehen Ihnen zur Verfügung. Wenn Sie Hilfe bei der Auswahl des besten Produkt für Ihre Anwendung benötigen, melden Sie sich bei Uns. Und obwohl die LWL-Konverter von Perle extrem leicht zu installieren und zu konfigurieren sind, können Sie sich jederzeit an den Aftersales-Support wenden.

Trust icon
Vertrauen

Perle bietet seit 1976 zuverlässige Device Vernetzungslösungen an. Das sind über 40 Jahre Erfahrung, der Unternehmen auf der ganzen Welt vertrauen, wenn es um erstklassige Konnektivitätstechnologie für ablaufkritische Anwendungen geht.

Email Schicken

Fragen?

Nehmen Sie hier Kontakt mit uns auf!


E-Mail-SymbolEmail Schicken
KontaktsymbolEmail Schicken Callus-SymbolAnrufen
