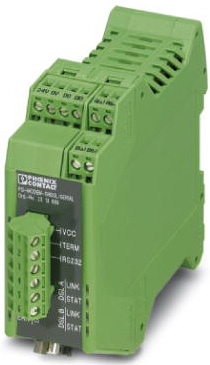

PSI-MODEM-SHDSL/SERIELLER Kupfer-Extender

RS232/422/485 über Kupfer

PSI-MODEM-SHDSL/SERIELLE Kupfer Extender

PSI-MODEM-SHDSL/SERIELLE Kupfer Extender

PSI-MODEM-SHDSL/SERIELLE Kupfer Extender
  • Übertragen serielle Daten bis zu 20 km
  • Zwei SHDSL-Ports für symmetrische Datenübertragung
  • Unterstützt RS232-, RS422- und RS485-Schnittstellen
  • Protokoll-transparent
Angebot Produkt Frage?
  • Übersicht
  • Hardwaredaten
  • Anwendungsdiagramme
  • Dokumentation
  • Bestelldetails

Der PSI-MODEM-SHDSL/SERIELL-Kupfer-Extender erweitert die serielle Datenübertragung transparent auf bis zu 20 km über eine Twisted Pair- (CAT5/6/7), Koaxial- oder eine beliebige bereits verlegte Kupferleitung, die zuvor in Alarmschaltkreisen, E1/T1-Schaltkreisen, Überwachungskamera- und CATV-Anwendungen verwendet wurde.

Langstrecken-Serielle-Datenübertragung über Kupfer

SHDSL ist die bevorzugte Technologie für die Übertragung digitaler Daten über lange Kupferkabel eines Netzwerks hinweg. Obwohl die Leistung von den Eigenschaften des verwendeten Kabels abhängt, ist die Reichweite von SHDSL viel größer als bei anderen derzeit verfügbaren DSL-Technologien. Außerdem ist die Upload- und Download-Bandbreite symmetrisch und liefert Datengeschwindigkeiten von bis zu 15,3 Mb/s über 2-polige und 30 Mb/s über 4-polige Kupferdrähte.

Der PSI-MODEM-SHDSL/SERIELL-Kupfer-Extender ist Protokoll-transparent und unterstützt RS-232-, RS-422- und RS-485-Schnittstellen. Mit zwei SHDSL-Ports können Sie leicht Punkt-zu-Punkt-, redundante Punkt-zu-Punkt-, lineare oder Sterntopologie-Netzwerke einrichten.

Zwei durch Software konfigurierbare Digitalausgänge sind zur Erzeugung eines externen Gerätealarms verfügbar.

Obwohl diese Geräte über eine "Plug-and-Play"-Funktion verfügen, kann die Stromversorgung über ein USB-Kabel erfolgen, falls bei der Einrichtung eine zusätzliche Gerätekonfiguration erforderlich sein sollte. Die einfache Konfigurationssoftware bietet Online-Diagnosen, eine Logbuch-Funktion, eine individuelle Projektkonfiguration und die Speicherung von Projektkonfigurationen. Außerdem verfügt der PSI-MODEM-SHDSL/SERIELL Extender über integrierte Diagnosefunktionen, ein Logbuch und eindeutig sichtbare LEDs, um Technikern vor Ort eine schnelle Gerätediagnose zur Verfügung zu stellen.


ROHS Konform
DIN Rail Kompatibel
ATEX Zertifiziert
RS232
SHDSL
DNP Konform

PSI-MODEM-SHDSL/SERIAL Technical Specifications

Serial interface
Interface 1 V.24 (RS-232) interface in acc. with ITU-T V.28, EIA/TIA-232, DIN 66259-1
Interface RS-232
Connection method D-SUB 9 plug
Transmission length max. 15 m
Termination resistor 390 Ω - 180 Ω - 390 Ω (can be connected)
Conductor cross section solid min. 0.2 mm²
Conductor cross section solid max. 2.5 mm²
Conductor cross section flexible min. 0.2 mm²
Conductor cross section flexible max. 2.5 mm²
Conductor cross section AWG min. 24
Conductor cross section AWG max. 13
Data flow control/protocols Software handshake, Xon/Xoff, hardware handshake (RTS/CTS), 3964R-compatible, Modbus (RTU/ASCII), transparent protocol - additional protocols supported
Serial transmission speed 0.11/0.3/1.2/2.4/4.8/9.6/19.2/38.4/57.6/115.2/230.4 kbps, NRZ
Interface 2 SHDSL interface according to ITU-T G.991.2.bis
Connection method 2 x 2-pos. COMBICON plug-in screw terminal blocks
Transmission length up to 20 km (Depending on data rate and cable cross section)
Serial transmission speed 4-wire operation: 64 kbps ... 30 Mbps
2-wire operation: 32 kbps ... 15.3 Mbps
Interface 3 USB 2.0
Connection method Mini-USB type B, 5-pos.
Transmission length < 5 m (only for configuration and diagnostics)
Interface 4 RS-422 interface in acc. with ITU-T V.11, EIA/TIA-422, DIN 66348-1
Interface RS-422
Connection method Plug-in/screw connection via COMBICON
File format/coding Serial asynchronous UART/NRZ, 7/8 data bits, 1/2 stop bits, 1 parity bit (even, odd, mark, space, none), 9/10/11-bit character length
Transmission length ≤ 1200 m
Termination resistor 390 Ω - 180 Ω - 390 Ω (can be connected)
Data flow control/protocols Automatic control // Modbus RTU/ASCII
Serial transmission speed 1.2/2.4/4.8/7.0/9.6/19.2/38.4/57.6/75/93.75/115.2/136/187.5/375/500/1500/2000 kbps, NRZ
Interface 5 RS-485 interface, in acc. with EIA/TIA-485, DIN 66259-4/RS-485 2-wire
Interface RS-485
Connection method Plug-in/screw connection via COMBICON
File format/coding Serial asynchronous UART/NRZ, 7/8 data, 1/2 stop, 1 parity, 10/11-bit character length
Transmission length up to 1200 m
Termination resistor 390 Ω - 180 Ω - 390 Ω (can be connected)
Protocols supported Transparent, including 3964R protocol
Data flow control/protocols Automatic control // Modbus RTU/ASCII
Serial transmission speed 1.2/2.4/4.8/7.0/9.6/19.2/38.4/57.6/75/93.75/115.2/136/187.5/375/500/1500/2000 kbps, NRZ
Digital outputs
Output name Digital output
Number of outputs 2
Voltage output signal depending on the operating voltage
Current output signal ≤ 150 mA (Short-circuit-proof)
Behavior of the outputs Deactivated for device supply via DIN rail connector
Function
Management User-friendly software: Guided configuration, plausibility checks, diagnostic functions, log book
Status and diagnostic indicators LEDs: VCC (supply voltage), RD/TD (serial data traffic), ERR (errors), TERM (termination resistor active), RS-232 (RS-232 active)
2 x LINK / 2 x STAT (DSL data traffic port A and port B), DIAG (diagnostic messages)
Ambient Conditions
Ambient temperature (operation) -20 °C ... 60 °C (for derating, see technical documentation)
Ambient temperature (storage/transport) -40 °C ... 85 °C
Permissible humidity (operation) 10 % ... 95 % (non-condensing)
Permissible humidity (storage/transport) 10 % ... 95 % (non-condensing)
Altitude 5000 m (For restrictions see manufacturer's declaration)
Degree of protection IP20
Noise immunity EN 61000-6-2
General
Electrical isolation DIN EN 50178 (VCC, RS-232 // RS-422, RS-485 // DSL (A) // DSL (B) // FE)
Test voltage data interface/power supply 1.5 kVrms (50 Hz, 1 min.)
Electromagnetic compatibility Conformance with EMC Directive 2014/30/EU
Net weight 339.4 g
Housing material PA 6.6-FR
Color green
MTTF 693 Years (SN 29500 standard, temperature 25°C, operating cycle 21 % (5 days a week, 8 hours a day))
301 Years (SN 29500 standard, temperature 40 °C, operating cycle 34.25 % (5 days a week, 12 hours a day))
121 Years (SN 29500 standard, temperature 40°C, operating cycle 100 % (7 days a week, 24 hours a day))
Conformance CE-compliant
Noise emission EN 55011
MTBF 1004 Years (Telcordia standard, 25°C temperature, 21% operating cycle (5 days a week, 8 hours a day))
199 Years (Telcordia standard, 40°C temperature, 34.25% operating cycle (5 days a week, 12 hours a day))
Power supply
Nominal supply voltage 24 V DC ±5 % (as an alternative or redundant, via backplane bus contact and system current supply)
5 V DC (configuration only, via mini-USB type B)
Supply voltage range 18 V DC ... 30 V DC
Typical current consumption < 180 mA (24 V DC)
Connection method COMBICON plug-in screw terminal block
Dimensions
Width 35 mm
Height 99 mm
Depth 114.5 mm
Environmental Product Compliance
China RoHS Environmentally Friendly Use Period = 50
Reach and RoHS Compliant Reach and RoHS Compliant
Standards and Regulations
Electromagnetic compatibility Conformance with EMC Directive 2014/30/EU
Conformance CE-compliant
ATEX II 3 G Ex nA nC IIC T4 Gc X
UL, USA/Canada cULus listed UL 508
Shock 15g in all directions in acc. with IEC 60068-2-27
Noise emission EN 55011
Noise immunity EN 61000-6-2
Vibration (operation) In acc. with IEC 60068-2-6: 5g, 150 Hz
Approvals
UL Listed
cUL Listed
EAC
ATEX
cULus Listed
Commercial data
Packing unit 1
Weight per piece 360.0 g
Country of origin Germany
Schnittstellen
  • RS-232, bis zu 230,4 Kb/s, automatischer DCE/DTE-Wechsel
  • RS-422, bis zu 2000 Kb/s
  • RS-485 W2, bis zu 2000 Kb/s, Klemmenwiderstand kann angeschlossen werden
Punkt-zu-Punkt-Verbindung über lange Distanzen zwischen seriellen Schnittstellen über Kupfer
PSI-MODEM-SHDSL 2-poliges Netzwerkdiagramm PSI-MODEM-SHDSL 4-poliges Netzwerkdiagramm
Lineares Topologienetzwerk über lange Distanzen
Schließen Sie bis zu 255 SHDSL-Geräte an. Nutzen Sie mehrere RS-232-Schnittstellen oder einen gemischten Betrieb inklusive RS-422 und RS-485. Der PSI-MODEM-SHDSL/SERIELLE Extender überträgt Datenprotokolle transparent.
PSI-MODEM-SHDSL lineares Netzwerkdiagramm PSI-MODEM-SHDSL lineares Netzwerkdiagramm 2
Sterntopologie-Netzwerk über lange Distanzen
Die Geräte sind über den Tragschienensteckverbinder (TBUS) in der Hauptstation angeschlossen. Der Tragschienensteckverbinder unterstützt RS-485. Er kann nicht mit RS-232 und RS-422 verwendet werden. Um eine Sterntopologie zu konfigurieren müssen Sie mehrere lineare Topologien erstellen. Im nachfolgenden Beispiel müssen Sie zwei lineare Topologien erstellen, die jeweils auch drei Geräten bestehen.
PSI-MODEM-SHDSL Sterntopologie PSI-MODEM-SHDSL Sterntopologie 2
Reichweite
Die höchstmögliche SHDSL-Datengeschwindigkeit hängt von mehreren Parametern ab. Zwei wichtige Parameter sind die Kabellänge und der Kabelquerschnitt. Das Diagramm zeigt die Abhängigkeit der maximalen SHDSL-Datengeschwindigkeit von der Leitungslänge anhand von 3 Kabeltypen. Längere Distanzen können mit qualitativ hochwertigen Kabeln mit größeren Durchmessern erreicht werden. Der PSI-MODEM-SHDSL/SERIELLE Extender ermöglicht Datengeschwindigkeiten über 2-polige Kupferdrähte von 32 Kb/s bis 15,3 Mb/s. Datengeschwindigkeiten von bis zu 30 Mb/s sind über 4-polige Kupferdrähte möglich.
Abbildung 1: Von der Distanz abhängige SHDSL-Datengeschwindigkeit, 2-polig
Diagramm zur SHDSL-Datengeschwindigkeit

Berechnung der SHDSL-Datengeschwindigkeiten mithilfe des PSI-SHDSL Calculator

Sehen Sie sich dieses Tutorial an und lernen Sie, wie die theoretische maximale Datengeschwindigkeit einer SHDSL-Leitung schnell und einfach mit der Software PSI-SHDSL Calculator berechnet wird. Allgemein hilft Ihnen die Software dabei, Ihr Projekt zuverlässiger zu planen.
