IOLAN SDSM Device Server

Device Server mit Integriertem V.92 Modem

IOLAN SDS1M Device Server

IOLAN SDS1M Device Server

IOLAN SDS1M Device Server
  • 1 software selectable RS232/422/485 serial port interface
  • Integrated V.92 modem - RJ11 jack
  • 10/100 Ethernet
  • Advanced security features for data encryption, user authentication and event management
Get a quote
Product question?
  • Übersicht
  • Features
  • Technische Daten
  • Anwendungen
  • Dokumentation
  • Bilder & Artikelnummer

Für die sichere Seriell zu Ethernet Konnektivität in Umgebungen welche Dial-up Modem Konnektivität benötigen, ist der IOLAN SDSM Device Server die fortschrittlichste Serverbaureihe dar, die gegenwärtig erhältlich ist. Höchste Leistung in einem kompakten Gehäuse: der IOLAN SDSM bietet robuste Sicherheit, Flexibilität und die IPv6 Technologie der nächsten Generation. Er ist ideal geeignet für Anwendungen wie den Fernzugriff auf Konsolen, Datenerfassung oder andere Überwachungsaufgaben mit Hilfe einer Einwahlverbindung zu dem eingebauten Modem.

Vorteile der IOLAN SDSM Device Server Modelle:

  • 66 Mhz, 87 MIPS Prozessor bietet die beste, derzeit erhältliche seriell-zu-Ethernet Performance
  • Die integrierte RJ11-Modemverbindung sorgt für eine sichere und zuverlässige Verbindung zum POTS-Netzwerk
  • TrueSerial® bietet die authentischste serielle Verbindung über Ethernet
  • Indicator für Netz und Seriellen-Schnittstellen für leichte Fehlersuche
  • Plug & Play Installations-Funktion beseitigt Konfiguration Mühe aller IOLAN auf Ihrem IP Netz
  • TruePort – COM/TTY-Redirector von Perle für serielle Anwendungen, der unter Windows, Vista, Linux, Solaris, SCO und Unix eingesetzt werden kann
  • Spannungsversorgung über serielles Kabel vermeidet Kosten einer seperaten Strominstallation
  • IP Unterstützung (IPv6) der nächsten Generation, Investitionsschutz und Netzwerk Kompatibilität
  • Solides Stahl Gehäuse für Desktop, Wand- oder DIN-Montage
  • Java-freier Browserzugriff auf serielle Remote-Konsolenports über Telnet und SSH
  • Ping-Watchdogsensoren ermöglichen dem Kunden das Aus- und Einschalten von Geräten mit angeschlossenen RPS-Power-Switches von Perle, falls Netzwerkeinrichtungen nicht mehr reagieren

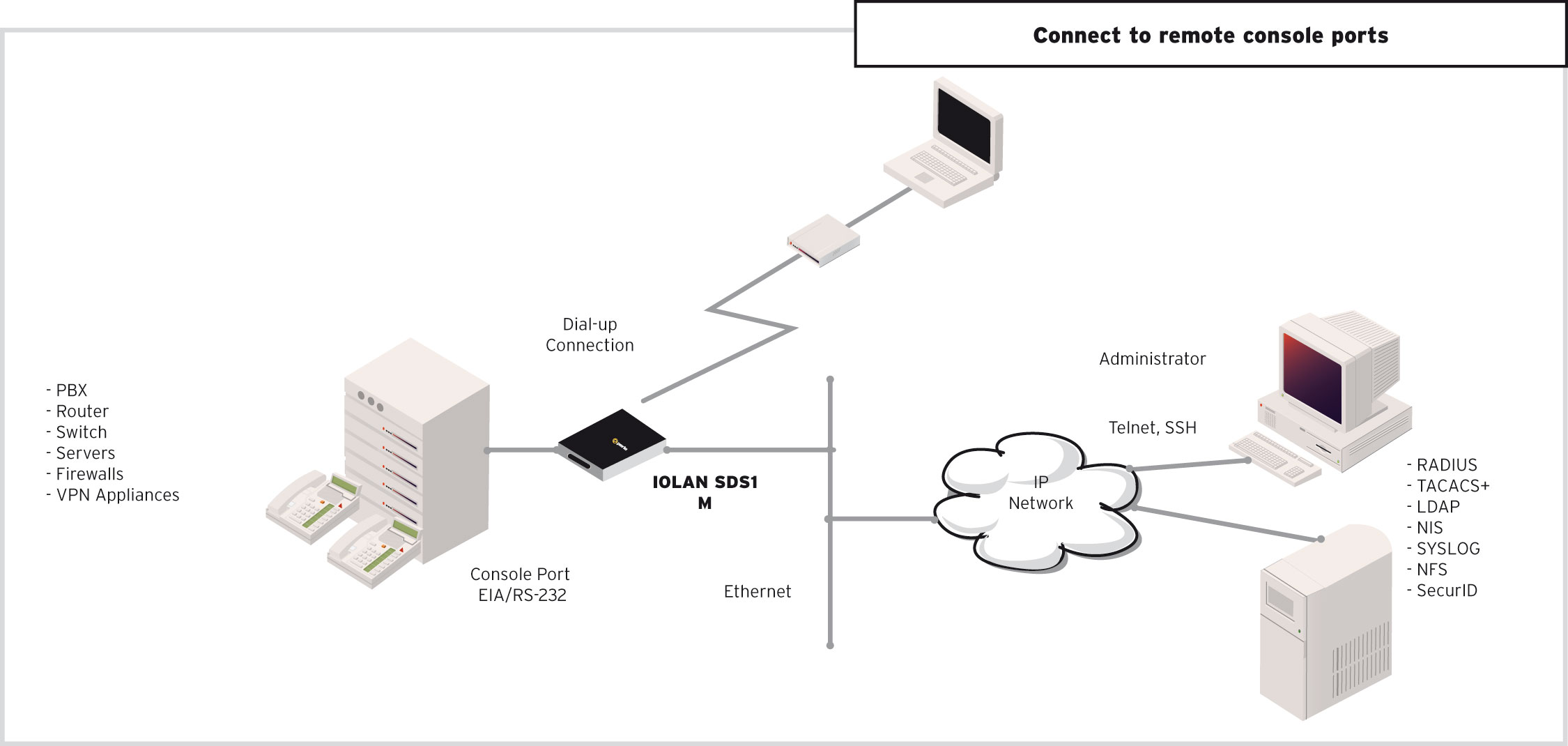

IOLAN SDS1M Device Server Diagram

IOLAN SDS1M Device Server Diagramm

IOLAN SDS1M Device Server Diagramr

Sichere Seriell zu Ethernet Konnektivität

IOLAN SDSM Device Server ermöglichen es Systemadministratoren, über ein IP-Netzwerk im Fernzugriff sicher auf Konsolenports von Einrichtungen wie Nebenstellenanlagen, Servern, Routern, Netzwerkspeichermedien und Sicherheitsanwendungen zuzugreifen. Sensible Daten wie Informationen zum Kreditkarteninhaber werden durch Standardverschlüsselungsmethoden wie Secure Shell (SSH) und Secure Sockets Layer (SSL) geschützt. Dank Mechanismen wie RADIUS, TACACS+, LDAP, Kerberos, NIS und RSA Security SecurID Tokens könne nur authorisierte Nutzer auf die Server zugreifen.

Sicheres Management von seriellen Konsolen (Sichere Anbindung von seriellen Geräten an das Ethernet ODER Sichere Serielle Konnektivität) Durch den Einsatz von modernen Verschlüsselungs-Technologien, schützt der IOLAN-Server sensible und vertrauliche Daten (z.B. von einem Kreditkarten-Leser) während der übertragung über das offene Internet oder das Intranet. Durch die Implementierung der gängigen Verschlüsselöungs-Standards wie AES, 3DES, RC4, RC2 ud CAST128 ist die reibungslose Kommunikation mit anderen Geräten garantiert.

Der IPSec-Standard gilt als sicherste Methode für die Kommunikation mit entfernten privaten Netzen ber das Internet und ermöglicht eine robuste Authentifizierung und Verschlüsselung von IP-Paketen auf der Vermittlungsschicht des OSI-Modells. Als Standard ist er aufgrund seiner Flexibilität und der Fähigkeit, den Einsatz der richtigen Lösung für eine bestimmte Anwendung zu ermöglichen, ideal für die Interoperation von Systemen mehrerer Anbieter in einem Netzwerk.

IOLAN-Plug-ins

Mit der Inbetriebnahme eines Perle Device Server können Sie sicher sein, dass Ihre Geräte, welche durch einen seriellen COM-Port mit Ihrer Applikation verbunden sind, so reibungslos weiterlaufen, als wären sie direkt verbunden. Falls der unwahrscheinliche Fall eintreten sollte, dass der Device Server nicht sofort “out of the box” diese Verbindung ermöglicht, beantragen Sie bitte sofort eine kostenlose Beratung mit einem unserer Ingenieure – Perle wird Ihre Applikation zum Laufen bringen.

IOLAN Device Server von Perle welche dem Kunden spezielle “Device Plug-ins" zur Verfügung stellt. Diese “Device Plug-ins” sorgen für die erfolgreiche Vernetzung der Geräte, wo andere Lösungen bislang versagt haben. Beantragen Sie eine kostenlose Beratung von einem unserer Ingenieure.

Fortschrittliche IP-Technologie

Der IPv6 Standard findet in der Industrie immer größere Verbreitung. Die IOLAN-Reihe von Perle bietet dank der vollen Konformität zum IPv6-Standard Firmenkunden unübertroffenen Investitionsschutz.

Der Bedarf für IPv6 (welches vom Adress-Schema mit IPv4 kompatibel ist) wird weitgehend durch das Wachstum von IP-Addressen getrieben. Mit der Integration und dem Rollout von fortgeschrittlichen Mobilfunknetzen, wird eine robuste Methode benötigt, um eine schnelle Inbetriebnahme einer großen Anzahl von neuen IP-adressierbaren Geräten zu bewältigen. Das US-Verteidigungsministerium spezifiziert, daß alle zu beschaffenden EDV-Investitionen IPv6 konform sein müssen. Zudem bieten alle gängigen Betriebssysteme wie Linux, UNIX, Windows Solaris und auch Router bereits volle IPv6 Unterstützung.

Daher ist es wichtig, daß Endkunden und System-Integratoren nur Geräte einkaufen, die IPv6 unterstützen. Unsere IOLAN-Reihe mit eingebauter IPv6 Unterstützung ist daher die beste Wahl um serielle Geräte an das Ethernet anzubinden.

Flexible und zuverlässige Anbindungen an das Ethernet

IOLAN SDSM Device Server stellen sich als ideal dar für den Anschluss auf serieller Technik basierender Einrichtungen wie COM-Ports, UDP- oder TCP-Sockets an Anwendungen im Fernzugriff. Perle’s Umleitungstreiber Software TruePort bietet fest stehende TTY- oder COM-Ports für Anwendungen auf serieller Basis, sodass die Kommunikation zu entfernten, an Geräteserver von Perle angeschlossene Anwendungen entweder verschlüsselt oder im reinen Textmodus, erfolgen kann. Sie können ferner serielle Daten zwischen den Geräten über ein IP-Netzwerk tunneln.

Perles Software für das Geräte-Management bietet die besser zentralisierte Steuerung einer Vielzahl von Einheiten, sodass eine maximale tatsächliche Nutzungsdauer Ihres remoten Equipments gegeben ist.

Standardmässig werden alle Produkte der IOLAN SDS Baureihe mit einer 15Kv-ESD-Überspannungssicherung ausgeliefert, die zusätzlichen Schutz vor elektrostatischen Entladungen und Spannungsspitzen bietet.

Lebenslange Gewährleistung

Die Perle IOLAN SDSM Device Server werden mit dem branchenweit besten Service und Support versehen, wozu auch Perles einzigartige Gewährleistung auf Lebenszeit zählt. Seit 1976 versorgt Perle seine Kunden mit Netzwerkprodukten, die höchsten Ansprüchen an Leistung, Flexibilität und Qualität genügen.

Software Features - IOLAN SDSM Device Server mit integriertem V.92 Modem

Serial Port Access
Connect directly using Telnet / SSH by port and IP address
Connect with EasyPort menu by Telnet / SSH
Use an internet browser to access with HTTP or secure HTTPS via EasyPort Web menu
Java-free browser access to remote serial console ports via Telnet and SSH
Ports can be assigned a specific IP address ( aliasing )
Multisession capability enables multiple users to access ports simultaneously *
Multihost access enables multiple hosts/servers to share serial ports
Accessibility
In-band ( Ethernet ) and out-of-band ( dial-up modem ) support
Dynamic DNS enables users to find a console server from anywhere on the Internet
Domain name control through DHCP option 81
IPV6 and IPV4 addressing support
Availability
Primary/Backup host functionality enables automatic connections to alternate host(s)
Security
SSH v1 and v2
PCI DSS Compliance: TLS v1.2, TLS v1.1, TLS v1.0, SSL v3.0, SSL v2.0
SSL Server and SSL client mode capability
SSL Peer authentication
IPSec VPN : NAT Traversal, ESP authentication protocol
SSH ciphers: AES-CTR, AES-GCM and ChaCha20-poly1305
SSL encryption: AES-GCM, key exchange ECDH-ECDSA, HMAC SHA256, SHA384
Encryption: AES (256/192/128), 3DES, DES, Blowfish, CAST128, ARCFOUR(RC4), ARCTWO(RC2)
Hashing Algorithms: MD5, SHA-1, RIPEMD160, SHA1-96, and MD5-96
Key exchange: RSA, EDH-RSA, EDH-DSS, ADH
X.509 Certificate verification: RSA, DSA
Certificate authority (CA) list
Local database
RADIUS Authentication, Authorization and Accounting
TACACS+ Authentication, Authorization and Accounting
LDAP, NIS, Kerberos Authentication
RSA SecureID-agent or via RADIUS Authentication
SNMP v3 Authentication and Encryption support
IP Address filtering
Disable unused daemons
Active Directory via LDAP
Terminal Server
Telnet
SSH v1 and v2
Rlogin
Auto session login
LPD, RCP printer
MOTD - Message of the day
Serial machine to Ethernet
Tunnel raw serial data across Ethernet - clear or encrypted
Raw serial data over TCP/IP
Raw serial data over UDP
Serial data control of packetized data
Share serial ports with multiple hosts/servers
Virtual modem simulates a modem connection - assign IP address by AT phone number
Virtual modem data can be sent over the Ethernet link with or without SSL encryption
TruePort com/tty redirector for serial based applications on Windows, Linux, Solaris, SCO, HP UX, NCR UNIX and AIX. For a complete list of all the latest drivers click here
TrueSerial packet technology provides the most authentic serial connections across Ethernet ensuring serial protocol integrity
RFC 2217 standard for transport of serial data and RS232 control signals
Customizable or fixed serial baud rates
Plug-ins allow customer or Perle provided plug-ins for special applications
Software Development Kit ( SDK ) available
Serial encapsulation of industrial protocols such as ModBus, DNP3 and IEC-870-5-101
ModBus TCP gateway enables serial Modbus ASCII/RTU device connection to ModBus TCP
Data logging will store serial data received when no active TCP session and forward to network peer once session re-established - 32K bytes circular per port
Console Management
Sun / Oracle Solaris Break Safe
Local port buffer viewing - 256K bytes per port
External port buffering via NFS, encrypted NFS and Syslog
Event notification
Manage AC power of external equipment using Perle RPS power management products
Clustering - central console server enables access ports across multiple console servers
Windows Server 2003/2008 EMS - SAC support GUI access to text-based Special Administrative Console
Ping watchdog probes enable customers to power cycle equipment with attached Perle RPS power switches in the event of an unresponsive networking gear
Remote Access
Dial, direct serial PPP, PAP/CHAP, SLIP
  HTTP tunneling enables firewall-safe access to remote serial devices across the internet
Automatic DNS Update Utilize DHCP Opt 81 to set IOLAN domain name for easy name management and with Dynamic DNS support , users on the Internet can access the device server by name without having to know its IP address. See Automatic DNS update support for details
IPSEC VPN client/servers Microsoft L2TP/IPSEC VPN client ( native to Windows XP)
Microsoft IPSEC VPN Client ( native to Windows Vista )
Cisco routers with IPSEC VPN feature set
Perle IOLAN SDS/STS and SCS models
OA&M ( Operations, Administration and Management )
SNMP V3 - read and write, Perle MIB
Syslog
Perle Device Manager - Windows based utility for large scale deployments
Configurable default configuration
Installation Wizard
Set a Personalized Factory Default for your IOLANs
Protocols
IPv6, IPv4, TCP/IP, Reverse SSH, SSH, SSL, IPSec/IPv4, IPSec/IPv6, L2TP/IPSec, CIDR, RIPV2/MD5, ARP, RARP, UDP, UDP Multicast, ICMP, BOOTP, DHCP, TFTP, SFTP, SNTP, Telnet, raw, reverse Telnet, LPD, RCP, DNS, Dynamic DNS, WINS, HTTP, HTTPS, SMTP, SNMPV3, PPP, PAP/CHAP, SLIP, CSLIP, RFC2217, MSCHAP

* Available on 2 and 4 port models

Hardware Specifications - IOLAN SDSM Device Server with integrated V.92 Modem

  IOLAN SDS1 M
Processor MPC852T, 66 Mhz, 87 MIPS
Memory
RAM MB 32
Flash MB 8
Interface Ports
Number of Serial Ports 1
Serial Port Interface Software selectable EIA-232/422/485 on RJ45
Modem Port RJ11 connector, V.92/V.90 standard
Sun / Solaris Sun / Oracle ‘Solaris' Safe - no "break signal" sent during
power cycle causing costly server re-boots or downtime
Serial Port Speeds 50bps to 230Kbps with customizable baud rate support
Data Bits Configurable for 5,6,7 or 8-bit protocol support
Use TruePort to transparently pass 9-bit serial data
Parity Odd, Even, Mark, Space, None
Flow Control Hardware, Software, Both, None
Serial Port Protection 15Kv Electrostatic Discharge Protection (ESD )
Local Console Port RS232 on Serial Port
Network 10-base T / 100-base TX Ethernet RJ45
Software selectable Ethernet speed 10/100 Auto
Software selectable Half/Full/Auto duplex
Ethernet Isolation 1.5Kv Magnetic Isolation
Power
Power Supply 120 V AC (USA), 230V AC (International) Wall Power Adaptor included
Power Supply Options Power via External power 9-30v DC,
4.8 Watts uses standard 5.5mm x 9.5mm x 2.1mm barrel socket,
Power IN over serial cable
Nominal Input Voltage 12v DC
Input Voltage Range 9-30v DC
Power External Device via Serial Port +5v DC regulated, 1W max
Typical Power Consumption @
12v DC (Watts )
1.7
(does not include power for devices connected to serial port)
Indicators
LEDs Power/Ready
Network Link
Network Link activity
Serial: Transmit and Receive data per port
Environmental Specifications
Heat Output
(BTU/HR )
5.8
MTBF (Hours ) 414,649

Calculation model based on MIL-HDBK-217-FN2 @ 30 °C

Operating Temperature 0C to 55C, 32F to 131F
Storage Temperature -40C to 66C, -40F to 150F
Humidity 5 to 95% (non condensing) for both storage and operation.
Case SECC Zinc plated sheet metal (1 mm)
Ingress Protection Rating IP40
Mounting Wall or Panel mounting, DIN Rail mounting kit optional
Product Weight and Dimensions
Weight 0.23 Kg (0.5 lbs)
Dimensions 91 x 64 x 24 (mm),
3.6 x 2.5 x 0.92 (in)
not including mounting tabs,
91 x 89 x 24 (mm),
3.6 x 3.5 x 0.92 (in) includes mounting tabs
Packaging
Shipping Dimensions 25.5 x 16.5 x 6.5 (cm), 10 x 6.5 x 2.6 (in)
Shipping weight 0.75 Kg including Power Adaptor
Regulatory Approvals
Emissions FCC Part 15, Subpart B, Class A
CFR47:2003, Chapter 1, Part 15 Subpart B,(USA) Class A
ICES-003, Issue 4, February 2004 (Canada)
CISPR 32:2015/EN 55032:2015 (Class A)
EN55011 (CISPR11)
EN61000-3-2 : 2010, Limits for Harmonic Current Emissions
EN61000-3-3 : 2010, Limits of Voltage Fluctuations and Flicker
Immunity CISPR 24:2010/EN 55024:2010
EN61000-4-2: Electrostatic Discharge
EN61000-4-3: RF Electromagnetic Field Modulated
EN61000-4-4: Fast Transients
EN61000-4-5: Surge
EN61000-4-6: RF Continuous Conducted
EN61000-4-8: Power-Frequency Magnetic Field
EN61000-4-11: Voltage Dips and Voltage Interruptions
Safety IEC 60950-1(ed 2); am1, am2 and
EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013
CAN/CSA-C22.2 No. 60950-1-03 and ANSI/UL 60950-1,
First Edition April 1st 2003 (Recognized Component
Other Reach, RoHS and WEEE Compliant
Directive 2011/65/EU restriction of the use of certain hazardous substances in electrical and electronic equipment and meets the following standard:: EN 50581:2012
CCATS - G168387
ECCN - 5A992
HTSUS Number: 8517.62.0020
Perle Limited Lifetime Warranty

IOLAN RJ45 Serial Connector Pinout

RJ45 SocketRJ45 Socket

Pinout Direction EIA-232 EIA-422 EIA-485 Full Duplex EIA-485 Half Duplex
1   Power In (9-30V DC) Power In (9-30V DC) Power In (9-30V DC) Power In (9-30V DC)
2 in DCD
3 out RTS TxD+ TxD+ TxD+/RxD+
4 in DSR
5 out TxD TxD- TxD- TxD-/RxD-
6 in RxD RxD+ RxD+
7   GND GND GND GND
8 in CTS RxD- RxD-
9 out DTR
10   Power out Power out Power out Power out

Optional Perle adapters for use with straight thru CAT5 cabling

TCP

Using RAW TCP Sockets

A raw TCP socket connection which can be initiated from the serial-Ethernet device or from the remote host/server. This can either be on a point to point or shared basis where a serial device can be shared amongst multiple devices. TCP sessions can be initiated either from the TCP server application or from thePerle IOLAN serial-Ethernet adapter.

diagram-tcp
UDP

Using Raw UDP Sockets

For use with UDP based applications, Perle IOLANs can convert serial equipment data for transport across UDP packets either on a point to point basis or shared across multiple devices.

diagram-udp
Console Server

Console Management

For access to remote console ports on routers, switches,etc, Perle IOLAN’s enable administrators secure access to these RS232 ports via inband Reverse Telnet / SSH or out of band with dial-up modems. Perle IOLAN models with integrated modems are available.

diagram console
COM/TTY

Connect Serial-based Applications with a COM/TTY Port Driver

Serial ports can be connected to network servers or workstations running Perle's TruePort software operating as a virtual COM port. Sessions can be initiated either from the Perle IOLAN or from TruePort.

diagram com tty
Tunneling

Serial Tunneling between two Serial Devices

Serial Tunneling enables you to establish a link across Ethernet to a serial port on another IOLAN. Both IOLAN serial ports must be configured for Serial Tunneling (typically one serial port is configured as a Tunnel Server and the other serial port as a Tunnel Client).

diagram tunneling
Virtual Modem

Virtual Modem

Enables the serial-Ethernet adapter to simulate a modem connection. When connected to the IOLAN and initiates a modem connection, the IOLAN starts up a TCP connection to another IOLAN serial-Ethernet adapter configured with a Virtual Modem serial port or to a host running a TCP application.

diagram modem
Seitenanfang

Produkte

Anwendungen

Über Perle

Kontakt

Vertrieb

Technischer Support

Site Map

Rechtliche Hinweise

Cookies & Datenschutz

Produkte von Perle

specialix Chase Research

Besuchen Sie uns

Copyright © 1996 - 2021 Perle. Alle Rechte vorbehalten

×

Perle Kunden

  • Amazon
  • Cisco
  • Boeing
  • Daimler

Warum Perle?

Technical Support icon
Technischer Support

Mitarbeiter aus dem Vertrieb und technischen Bereich, stehen Ihnen zur Verfügung. Wenn Sie Hilfe bei der Auswahl des besten Produkt für Ihre Anwendung benötigen, melden Sie sich bei Uns. Und obwohl die LWL-Konverter von Perle extrem leicht zu installieren und zu konfigurieren sind, können Sie sich jederzeit an den Aftersales-Support wenden.

Trust icon
Vertrauen

Perle bietet seit 1976 zuverlässige Device Vernetzungslösungen an. Das sind über 40 Jahre Erfahrung, der Unternehmen auf der ganzen Welt vertrauen, wenn es um erstklassige Konnektivitätstechnologie für ablaufkritische Anwendungen geht.

Email Schicken

Fragen?

Nehmen Sie hier Kontakt mit uns auf!


E-Mail-SymbolEmail Schicken
KontaktsymbolEmail Schicken Callus-SymbolAnrufen
