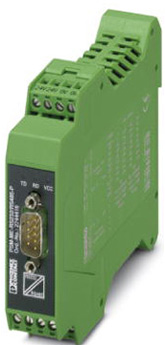

PSM-ME-RS232/RS485-P Serieller Schnittstellen Konverter

RS232-auf-RS485-Konverter mit galvanischer Trennung

PSM-ME-RS232 zu RS485 Umsetzer

PSM-ME-RS232 zu RS485 Umsetzer

PSM-ME-RS232 zu RS485 Umsetzer
  • Wandelt RS232 auf RS422 oder RS485
  • Übertragungsraten bis zu 115,2 KBit/s
  • Unterstützt Vollduplex und Halbduplex
  • Elektrische 3-Wege-Trennung
Angebot Produkt Frage?
  • Übersicht
  • Hardwaredaten
  • Anwendungsdiagramme
  • Dokumentation
  • Bestelldetails

Der PSM-ME-RS232/RS485-P wandelt bidirektional RS-232-Schnittstellensignale auf RS-485-(2/4-polig) und RS-422-Standard um

Der PSM-ME-RS232/RS485-P unterstützt die ausgeglichene 4-polige Vollduplexkommunikation, oder den 2-poligen Halbduplex, und eignet sich für die meisten Anwendungen, einschließlich industrieller, gewerblicher und allgemeiner Bürocomputergeräte. Übertragungsgeschwindigkeiten von 1,2 Kb/s bis zu 115,2 Kb/s können auf Punkt-zu-Punkt- und Punkt-zu-Multipunkt-Netzwerke angewandt werden.

Nutzen Sie den PSM-ME-RS232/RS485-P in allen allgemeinen Bussystemen mit dem UART/NRZ-Datenformat und einer Zeichenlänge von 10/11 Bits. Diese ist die beste "Plug-and-Play"-Lösung für das Umwandeln von RS-232 (V.24) auf RS-422 (V.11) und RS-485 mit elektrischer Isolation.

RS232 zu RS485 Konverter Features

  • RS-422 4-Draht Punkt-zu-Punkt-Betrieb
  • RS-485 2-Drahtbetrieb, Halbduplex
  • RS-485 4-Drahtbetrieb, Vollduplex
  • Automatischer Sende-/Empfangswechsel
  • Übertragungsraten von 1,2 Kb/s bis zu 115,2 Kb/s
  • Integrierter Datenindikator zur dynamischen Anzeige von Sende- und Empfangsdaten
  • Hochwertige 3-Wege-Trennung zwischen Stromversorgung, V.24 (RS-232) und RS-422/485 für das zuverlässige Entkoppeln der Potentiale mit 1,5 kV
  • Integrierter Überspannungsschutz mit Transientenableitung zur Tragschiene
  • Schiffbauzulassung nach DNV

RoHS Konform
ATEX Zertifiziert
DNP Konform

PSM-ME-RS232/RS485-P Technical Specifications

Serial interface
Interface 1 V.24 (RS-232) interface in acc. with ITU-T V.28, EIA/TIA-232, DIN 66259-1
Connection method D-SUB 9 plug
Transmission length 15 m (shielded twisted pair)
Conductor cross section flexible min. 0.2 mm²
Conductor cross section flexible max. 2.5 mm²
Conductor cross section AWG min. 24
Conductor cross section AWG max. 12
Pin assignment DTE/DCE switchover via switch
Protocols supported transparent protocol
Serial transmission speed 1.2; 2.4; 4.8; 7.2; 9.6; 19.2; 31.25; 38.4; 57.6; 75; 93.75; 115.2 kbps
Interface 2 RS-422 interface in acc. with ITU-T V.11, EIA/TIA-422, DIN 66348-1
Connection method Pluggable screw connection
Transmission length 1200 m (shielded twisted pair)
Termination resistor 390 Ω
150 Ω
390 Ω (Can be connected)
Conductor cross section flexible min. 0.2 mm²
Conductor cross section flexible max. 2.5 mm²
Conductor cross section AWG min. 24
Conductor cross section AWG max. 13
Protocols supported transparent protocol
Serial transmission speed 1.2; 2.4; 4.8; 9.6; 19.2; 38.4; 57.6; 75; 93.75; 115.2 kbps
Interface 3 RS-485 interface in acc. with EIA/TIA-485, DIN 66259-1
Connection method Pluggable screw connection
Data direction switching Automatic control or via RTS/CTS
Transmission length 1200 m (shielded twisted pair)
Termination resistor 390 Ω
150 Ω
390 Ω (Can be connected)
Conductor cross section flexible max. 2.5 mm²
Conductor cross section flexible min. 0.2 mm²
Conductor cross section AWG max. 14
Conductor cross section AWG min. 24
Protocols supported transparent protocol
Serial transmission speed 1.2; 2.4; 4.8; 9.6; 19.2; 38.4; 57.6; 75; 93.75; 115.2 kbps
Ambient Conditions
Ambient temperature (operation) -40 °C ... 70 °C
Ambient temperature (storage/transport) -40 °C ... 85 °C
Permissible humidity (operation) 10 % ... 95 % (non-condensing)
Altitude 5000 m (For restrictions see manufacturer's declaration)
Degree of protection IP20
Noise immunity EN 50 082-2
General
Electrical isolation VCC // V.24 (RS-232) // RS-485
Test voltage data interface/power supply 1.5 kV AC
Electromagnetic compatibility Conformance with EMC Directive 2014/30/EU
Net weight 139.88 g
Housing material PA 6.6-FR
Color green
MTTF 1654 Years (SN 29500 standard, temperature 25°C, operating cycle 21 % (5 days a week, 8 hours a day))
746 Years (SN 29500 standard, temperature 40 °C, operating cycle 34.25 % (5 days a week, 12 hours a day))
310 Years (SN 29500 standard, temperature 40°C, operating cycle 100 % (7 days a week, 24 hours a day))
Conformance CE-compliant
ATEX II 3 G Ex nA IIC T4 Gc (Please follow the special installation instructions in the documentation!)
UL, USA/Canada 508 recognized
Noise emission EN 50 081-1
MTBF 10 Years (Telcordia standard, temperature 40 °C, operating cycle 100 % (7 days a week, 24 hours a day))
Transmission channels 2 (1/1), RxD, TxD, full duplex
Bit delay ≤ 2.5 µs
Bit distortion ≤ 5 %
Test voltage data interfaces 1.5 kV AC
Test voltage data interface/power supply 1.5 kV AC
Degree of pollution 2
IECEx Ex nA IIC T4 Gc
Power supply
Nominal supply voltage 24 V AC/DC
Supply voltage range 18 V AC/DC ... 30 V AC/DC (via pluggable COMBICON screw terminal block)
Typical current consumption 85 mA (24 V DC)
Max. current consumption 100 mA
Conductor cross section flexible max. 2.50 mm²
Conductor cross section flexible min. 0.20 mm²
Conductor cross section solid max. 2.50 mm²
Conductor cross section solid min. 0.20 mm²
Max. AWG conductor cross section, flexible 12
Min. AWG conductor cross section, flexible 24
Conductor cross section AWG max. 12
Conductor cross section AWG min. 24
Dimensions
Width 22.5 mm
Height 99 mm
Depth 114.5 mm
PSM-ME-RS232-RS485-CONVERTER
Environmental Product Compliance
China RoHS Environmentally Friendly Use Period = 50
Reach and RoHS Compliant Reach and RoHS Compliant
Standards and Regulations
Electromagnetic compatibility Conformance with EMC Directive 2014/30/EU
Free fall In acc. with IEC 60068-2-32
Result: 1 m
Vibration resistance In acc. with EN 60068-2-6/IEC 60068-2-6
Result: 5g, 10...150 Hz, 2.5 h, in XYZ direction
EMC Immunity EN 61000-4-2: Contact discharge ± 6 kV (Test Level 3)
EN 61000-4-3: Frequency range 26 MHz ... 3 GHz (Test Level 3)
EN 61000-4-4: Criterion B
EN 61000-4-5: Signal ± 1 kV (Data line, asymmetrical)
EN 55011
EN 61000-4-6: Frequency range 0.15 MHz ... 80 MHz
Conformance CE-compliant
ATEX II 3 G Ex nA IIC T4 Gc
UL, USA/Canada 508 recognized
Noise emission EN 50 081-1
Noise immunity EN 50 082-2
Shock In acc. with EN 60068-2-27/IEC 60068-2-27
Result: 25g, 11 ms period, half-sine shock pulse
Connection in acc. with standard CUL
IECEx Ex nA IIC T4 Gc
UL, USA/Canada Class I, Div. 2, Groups A, B, C, D
Class I, Zone 2, AEx nA IIC T4
Class I, Zone 2, Ex nA IIC T4 Gc X
Approvals
UL Recognized
cUL Recognized
DNV
EAC
KC
cULus Recognized
UL Listed
cUL Listed
IECEx
ATEX
cULus Listed
Commercial data
Packing unit 1
Weight per piece 200.0 g
Country of origin Germany
Punkt-zu-Punkt-Verbindung zwischen zwei RS-232-Schnittstellen über RS-422
Verwenden Sie den RS-422-Standard, um schnelle, störungsfreie Punkt-zu-Punkt-Verbindungen zu implementieren. Verbindungen zwischen zwei RS232-Geräten über bis zu 1200 m können mithilfe eines abgeschirmten, 4-poligen Twisted-Pair-Kabels hergestellt werden.
Diagramm für PSM-ME-RS232 auf RS485-Punkt-zu-Punkt-Netzwerke
RS232 auf RS485-Multipunkt
Der RS-485-Standard erlaubt die Kommunikation zwischen mehr als zwei Geräten. Durch die Umwandlung der RS-232-Punkt-zu-Punkt-Schnittstelle in den Bus-fähigen RS-485-Standard können Sie ein Netzwerk von bis zu 32 Geräten über 2- oder 4-polige Kabel aufbauen.
RS232 auf RS485 Schnittstellenanpassung

Abb. 1 Schnittstellenanpassung oder Programmierverbindung


RS232 auf RS485-Masterschnittstellenverbindung

Fig2. Masterschnittstellenverbindung


RS232 auf RS485 Vernetzung

Fig3. Vernetzung von RS-232-Geräten

Blockschaltbild
Blockschaltbild
