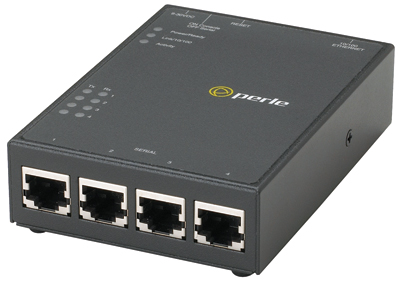

IOLAN SDS HL Device Server
Class 1 Div 2 Hazloc Zertifizierte Device Server

- 4 per software wählbare RS232/422/485 serielle Schnittstellen
- Class 1, Zone 2 zertifiziert für Gefahrenbereiche
- Konforme Beschichtung der Printplatte
- Erweiterter Temperaturbereich von -40°C bis +74°C
- 10/100 Ethernet
- Fortschrittliche Sicherheitsfeatures zur Datenverschlüsselung, Benutzer-Authentifikation und Event Management
Der IOLAN SDS HL Device Server ist eine Seriell-zu-Ethernet-Lösung, die für den Einsatz in industriellen Gefahrenbereichen (hazardous locations, Hazloc) entwickelt wurde. Zertifiziert als Class 1 Zone 2 Gerät für Gefahrenbereiche ermöglicht der IOLAN SDS HL den sicheren und zuverlässigen Betrieb in Umgebungen, in denen flüchtige, entflammbare Gase, entflammbare Flüssigkeitsdämpfe oder brennbare Flüssigkeitsdämpfe vorkommen bzw. verarbeitet oder verwendet werden.
Vorteile der IOLAN SDS HL Device Server Modelle:
- 66 Mhz, 87 MIPS Prozessor bietet die beste, derzeit erhältliche seriell-zu-Ethernet Performance
- Class 1, Zone 2 zertifiziert für Gefahrenbereiche
- Konforme Beschichtung schützt vor Feuchtigkeit, Staub und Chemikalien
- Betrieb in Umgebungen wo -40C to +74C Temperaturen erforderlich sind
- TrueSerial® bietet die authentischste serielle Verbindung über Ethernet
- Indicator für Netz und Seriellen-Schnittstellen für leichte Fehlersuche
- Plug & Play Installations-Funktion beseitigt Konfiguration Mühe aller IOLAN auf Ihrem IP Netz
- TruePort – COM/TTY-Redirector von Perle für serielle Anwendungen, der unter Windows, Vista, Linux, Solaris, SCO und Unix eingesetzt werden kann
- Power over serial Kabel eliminiert die Kosten einer seperaten Strom Installation
- IP Unterstützung (IPv6) der nächsten Generation, Investitionsschutz und Netzwerk Kompatibilität
- Solides Stahl Gehäuse für Desktop, Wand- oder DIN-Montage
- Java-freier Browserzugriff auf serielle Remote-Konsolenports über Telnet und SSH
- Ping-Watchdogsensoren ermöglichen dem Kunden das Aus- und Einschalten von Geräten mit angeschlossenen RPS-Power-Switches von Perle, falls Netzwerkeinrichtungen nicht mehr reagieren
Sichere Seriell zu Ethernet Konnektivität
Device Server der Reihe IOLAN SDS ermöglichen es Systemadministratoren, über ein IP-Netzwerk im Fernzugriff sicher auf Konsolenports von Einrichtungen wie Nebenstellenanlagen, Servern, Routern, Netzwerkspeichermedien und Sicherheitsanwendungen zuzugreifen. Sensible Daten wie Informationen zum Kreditkarteninhaber werden durch Standardverschlüsselungsmethoden wie Secure Shell (SSH) und Secure Sockets Layer (SSL) geschützt. Dank Mechanismen wie RADIUS, TACACS+, LDAP, Kerberos, NIS und RSA Security SecurID Tokens könne nur authorisierte Nutzer auf die Server zugreifen.
Sicheres Management von seriellen Konsolen (Sichere Anbindung von seriellen Geräten an das Ethernet ODER Sichere Serielle Konnektivität) Durch den Einsatz von modernen Verschlüsselungs-Technologien, schützt der IOLAN-Server sensible und vertrauliche Daten (z.B. von einem Kreditkarten-Leser) während der übertragung über das offene Internet oder das Intranet. Durch die Implementierung der gängigen Verschlüsselöungs-Standards wie AES, 3DES, RC4, RC2 ud CAST128 ist die reibungslose Kommunikation mit anderen Geräten garantiert.
Der IPSec-Standard gilt als sicherste Methode für die Kommunikation mit entfernten privaten Netzen ber das Internet und ermöglicht eine robuste Authentifizierung und Verschlüsselung von IP-Paketen auf der Vermittlungsschicht des OSI-Modells. Als Standard ist er aufgrund seiner Flexibilität und der Fähigkeit, den Einsatz der richtigen Lösung für eine bestimmte Anwendung zu ermöglichen, ideal für die Interoperation von Systemen mehrerer Anbieter in einem Netzwerk.
IOLAN-Plug-ins
Mit der Inbetriebnahme eines Perle Device Server können Sie sicher sein, dass Ihre Geräte, welche durch einen seriellen COM-Port mit Ihrer Applikation verbunden sind, so reibungslos weiterlaufen, als wären sie direkt verbunden. Falls der unwahrscheinliche Fall eintreten sollte, dass der Device Server nicht sofort “out of the box” diese Verbindung ermöglicht, beantragen Sie bitte sofort eine kostenlose Beratung mit einem unserer Ingenieure – Perle wird Ihre Applikation zum Laufen bringen.
IOLAN Device Server von Perle welche dem Kunden spezielle “Device Plug-ins” zur Verfügung stellt. Diese “Device Plug-ins” sorgen für die erfolgreiche Vernetzung der Geräte, wo andere Lösungen bislang versagt haben. Beantragen Sie eine kostenlose Beratung von einem unserer Ingenieure.
Fortschrittliche IP-Technologie
Der IPv6 Standard findet in der Industrie immer größere Verbreitung. Die IOLAN-Reihe von Perle bietet dank der vollen Konformität zum IPv6-Standard Firmenkunden unübertroffenen Investitionsschutz.
Der Bedarf für IPv6 (welches vom Adress-Schema mit IPv4 kompatibel ist) wird weitgehend durch das Wachstum von IP-Addressen getrieben. Mit der Integration und dem Rollout von fortgeschrittlichen Mobilfunknetzen, wird eine robuste Methode benötigt, um eine schnelle Inbetriebnahme einer großen Anzahl von neuen IP-adressierbaren Geräten zu bewältigen. Das US-Verteidigungsministerium spezifiziert, daß alle zu beschaffenden EDV-Investitionen IPv6 konform sein müssen. Zudem bieten alle gängigen Betriebssysteme wie Linux, UNIX, Windows Solaris und auch Router bereits volle IPv6 Unterstützung.
Daher ist es wichtig, daß Endkunden und System-Integratoren nur Geräte einkaufen, die IPv6 unterstützen. Unsere IOLAN-Reihe mit eingebauter IPv6 Unterstützung ist daher die beste Wahl um serielle Geräte an das Ethernet anzubinden.
Flexible und zuverlässige Anbindungen an das Ethernet
IOLAN SDS HL Device Server stellen sich als ideal dar für den Anschluss auf serieller Technik basierender Einrichtungen wie COM-Ports, UDP- oder TCP-Sockets an Anwendungen im Fernzugriff. Perle’s Umleitungstreiber Software TruePort bietet fest stehende TTY- oder COM-Ports für Anwendungen auf serieller Basis, sodass die Kommunikation zu entfernten, an Geräteserver von Perle angeschlossene Anwendungen entweder verschlüsselt oder im reinen Textmodus, erfolgen kann. Sie können ferner serielle Daten zwischen den Geräten über ein IP-Netzwerk tunneln.
Perles Software für das Geräte-Management bietet die besser zentralisierte Steuerung einer Vielzahl von Einheiten, sodass eine maximale tatsächliche Nutzungsdauer Ihres remoten Equipments gegeben ist.
Standardmässig werden alle Produkte der IOLAN SDS Baureihe mit einer 15Kv-ESD-Überspannungssicherung ausgeliefert, die zusätzlichen Schutz vor elektrostatischen Entladungen und Spannungsspitzen bietet.
Lebenslange Gewährleistung
Die Perle IOLAN SDS HL Device Server werden mit dem branchenweit besten Service und Support versehen, wozu auch Perles einzigartige Gewährleistung auf Lebenszeit zählt. Seit 1976 versorgt Perle seine Kunden mit Netzwerkprodukten, die höchsten Ansprüchen an Leistung, Flexibilität und Qualität genügen.
Software Features - IOLAN SDS HL Device Server
Serial Port Access | |
---|---|
Connect directly using Telnet / SSH by port and IP address | |
Connect with EasyPort menu by Telnet / SSH | |
Use an internet browser to access with HTTP or secure HTTPS via EasyPort Web menu | |
Java-free browser access to remote serial console ports via Telnet and SSH | |
Ports can be assigned a specific IP address ( aliasing ) | |
Multisession capability enables multiple users to access ports simultaneously * | |
Multihost access enables multiple hosts/servers to share serial ports | |
Accessibility | |
In-band ( Ethernet ) and out-of-band ( dial-up modem ) support | |
Dynamic DNS enables users to find a console server from anywhere on the Internet | |
Domain name control through DHCP option 81 | |
IPV6 and IPV4 addressing support | |
Availability | |
Primary/Backup host functionality enables automatic connections to alternate host(s) | |
Security | |
SSH v1 and v2 | |
PCI DSS Compliance: TLS v1.2, TLS v1.1, TLS v1.0, SSL v3.0, SSL v2.0 | |
SSL Server and SSL client mode capability | |
SSL Peer authentication | |
IPSec VPN : NAT Traversal, ESP authentication protocol | |
SSH ciphers: AES-CTR, AES-GCM and ChaCha20-poly1305 | |
SSL encryption: AES-GCM, key exchange ECDH-ECDSA, HMAC SHA256, SHA384 | |
Encryption: AES (256/192/128), 3DES, DES, Blowfish, CAST128, ARCFOUR(RC4), ARCTWO(RC2) | |
Hashing Algorithms: MD5, SHA-1, RIPEMD160, SHA1-96, and MD5-96 | |
Key exchange: RSA, EDH-RSA, EDH-DSS, ADH | |
X.509 Certificate verification: RSA, DSA | |
Certificate authority (CA) list | |
Local database | |
RADIUS Authentication, Authorization and Accounting | |
TACACS+ Authentication, Authorization and Accounting | |
LDAP, NIS, Kerberos Authentication | |
RSA SecureID-agent or via RADIUS Authentication | |
SNMP v3 Authentication and Encryption support | |
IP Address filtering | |
Disable unused daemons | |
Active Directory via LDAP | |
Terminal Server | |
Telnet | |
SSH v1 and v2 | |
Rlogin | |
Auto session login | |
LPD, RCP printer | |
MOTD - Message of the day | |
Serial machine to Ethernet | |
Tunnel raw serial data across Ethernet - clear or encrypted | |
Raw serial data over TCP/IP | |
Raw serial data over UDP | |
Serial data control of packetized data | |
Share serial ports with multiple hosts/servers | |
Virtual modem simulates a modem connection - assign IP address by AT phone number | |
Virtual modem data can be sent over the Ethernet link with or without SSL encryption | |
TruePort com/tty redirector for serial based applications on Windows, Linux, Solaris, SCO, HP UX, NCR UNIX and AIX. For a complete list of all the latest drivers click here | |
TrueSerial packet technology provides the most authentic serial connections across Ethernet ensuring serial protocol integrity | |
RFC 2217 standard for transport of serial data and RS232 control signals | |
Customizable or fixed serial baud rates | |
Plug-ins allow customer or Perle provided plug-ins for special applications | |
Software Development Kit ( SDK ) available | |
Serial encapsulation of industrial protocols such as ModBus, DNP3 and IEC-870-5-101 | |
ModBus TCP gateway enables serial Modbus ASCII/RTU device connection to ModBus TCP | |
Data logging will store serial data received when no active TCP session and forward to network peer once session re-established - 32K bytes circular per port | |
Console Management | |
Sun / Oracle Solaris Break Safe | |
Local port buffer viewing - 256K bytes per port | |
External port buffering via NFS, encrypted NFS and Syslog | |
Event notification | |
Manage AC power of external equipment using Perle RPS power management products | |
Clustering - central console server enables access ports across multiple console servers | |
Windows Server 2003/2008 EMS - SAC support GUI access to text-based Special Administrative Console | |
Ping watchdog probes enable customers to power cycle equipment with attached Perle RPS power switches in the event of an unresponsive networking gear | |
Remote Access | |
Dial, direct serial | PPP, PAP/CHAP, SLIP |
HTTP tunneling enables firewall-safe access to remote serial devices across the internet | |
Automatic DNS Update | Utilize DHCP Opt 81 to set IOLAN domain name for easy name management and with Dynamic DNS support , users on the Internet can access the device server by name without having to know its IP address. See Automatic DNS update support for details |
IPSEC VPN client/servers | Microsoft L2TP/IPSEC VPN client ( native to Windows XP) |
Microsoft IPSEC VPN Client ( native to Windows Vista ) | |
Cisco routers with IPSEC VPN feature set | |
Perle IOLAN SDS/STS and SCS models | |
OA&M ( Operations, Administration and Management ) | |
SNMP V3 - read and write, Perle MIB | |
Syslog | |
Perle Device Manager - Windows based utility for large scale deployments | |
Configurable default configuration | |
Installation Wizard | |
Set a Personalized Factory Default for your IOLANs | |
Protocols | |
IPv6, IPv4, TCP/IP, Reverse SSH, SSH, SSL, IPSec/IPv4, IPSec/IPv6, L2TP/IPSec, CIDR, RIPV2/MD5, ARP, RARP, UDP, UDP Multicast, ICMP, BOOTP, DHCP, TFTP, SFTP, SNTP, Telnet, raw, reverse Telnet, LPD, RCP, DNS, Dynamic DNS, WINS, HTTP, HTTPS, SMTP, SNMPV3, PPP, PAP/CHAP, SLIP, CSLIP, RFC2217, MSCHAP |
* Available on 2 and 4 port models
Hardware Specifications - IOLAN SDS4 HL Device Server
IOLAN SDS4 HL | |
---|---|
Processor | MPC852T, 66 Mhz, 87 MIPS |
Memory | |
RAM MB | 32 |
Flash MB | 8 |
Interface Ports | |
Number of Serial Ports | 4 |
Serial Port Interface | Software selectable EIA-232/422/485 on RJ45 |
Sun / Solaris | Sun / Oracle ‘Solaris' Safe - no "break signal" sent during power cycle causing costly server re-boots or downtime |
Serial Port Speeds | 50bps to 230Kbps with customizable baud rate support |
Data Bits | Configurable for 5,6,7 or 8-bit protocol support Use TruePort to transparently pass 9-bit serial data |
Parity | Odd, Even, Mark, Space, None |
Flow Control | Hardware, Software, Both, None |
Serial Port Protection | 15Kv Electrostatic Discharge Protection (ESD) |
Local Console Port | RS232 on Serial Port |
Network | 10-base T / 100-base TX Ethernet RJ45 |
Software selectable Ethernet speed 10/100 Auto | |
Software selectable Half/Full/Auto duplex | |
Ethernet Isolation | 1.5Kv Magnetic Isolation |
Power | |
Power Supply Options | Power via External power 9-30v DC, 4.8 Watts Terminal Block connector Power IN over serial cable |
Nominal Inut Voltage | 12v DC |
Input Voltage Range | 9-30v DC |
Input IOLAN over Serial | 9-30v DC |
Typical Power Consumption @ 12v DC (Watts) |
2.4 |
Indicators | |
LEDs | Power/Ready |
Network Link | |
Network Link activity | |
Serial: Transmit and Receive data per port | |
Environmental Specifications | |
Heat Output (BTU/HR) |
8.2 |
MTBF (Hours) | 118,466 |
Calculation model based on MIL-HDBK-217-FN2 @ 30 °C |
|
Operating Temperature | -40C to 74C, -40F to 165F |
Storage Temperature | -40C to 85C, -40F to 185F |
Humidity | 5 to 95% (non condensing) for both storage and operation. |
Case | SECC Zinc plated sheet metal (1 mm) |
Ingress Protection Rating | IP40 |
Mounting | Wall or Panel mounting, DIN Rail mounting kit optional |
Product Weight and Dimensions | |
Weight | 0.7 Kg (1.6 lbs) |
Dimensions | 11.3 x 8.1 x 2.8 (cm), 4.4 x 3.2 x 1.1 (in) |
Packaging | |
Shipping Dimensions | 25.5 x 16.5 x 6.5 (cm), 10 x 6.5 x 2.6 (in) |
Shipping Weight | 1.1 Kg (2.4 lbs) |
Regulatory Approvals | |
Emissions | FCC Part 15, Subpart B, Class A |
CFR47:2003, Chapter 1, Part 15 Subpart B,(USA) Class A | |
ICES-003, Issue 4, February 2004 (Canada) | |
CISPR 32:2015/EN 55032:2015 (Class A) | |
EN55011 (CISPR11) | |
EN61000-3-2 : 2010, Limits for Harmonic Current Emissions | |
EN61000-3-3 : 2010, Limits of Voltage Fluctuations and Flicker | |
Immunity | CISPR 24:2010/EN 55024:2010 |
EN61000-4-2: Electrostatic Discharge | |
EN61000-4-3: RF Electromagnetic Field Modulated | |
EN61000-4-4: Fast Transients | |
EN61000-4-5: Surge | |
EN61000-4-6: RF Continuous Conducted | |
EN61000-4-8: Power-Frequency Magnetic Field | |
EN61000-4-11: Voltage Dips and Voltage Interruptions | |
Safety | IEC 60950-1(ed 2); am1, am2 and EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013 |
CAN/CSA-C22.2 No. 60950-1-03 and ANSI/UL 60950-1, First Edition April 1st 2003 (Recognized Component) |
|
Hazardous Locations | EN 60079-0:2012+A11:2013, EN 60079-15:2010 and EN 60079-11:2012 ANSI/ISA - 12.12.01 - 2012 Class I and II, Division 2 and Class III, Division 1 and 2 (classified) locations (UL-1604) CSA C22.2 No. 213 - M1987, R2008 ATEX Class 1 Zone 2 |
Other | Reach, RoHS and WEEE Compliant |
CCATS - G168387 | |
ECCN - 5A992 | |
HTSUS Number: 8517.62.0020 | |
Perle Lifetime warranty |
IOLAN RJ45 Serial Connector Pinout | ||||||
---|---|---|---|---|---|---|
|
Pinout | Direction | EIA-232 | EIA-422 | EIA-485 Full Duplex | EIA-485 Half Duplex |
1 | Power In (9-30V DC) | Power In (9-30V DC) | Power In (9-30V DC) | Power In (9-30V DC) | ||
2 | in | DCD | ||||
3 | out | RTS | TxD+ | TxD+ | TxD+/RxD+ | |
4 | in | DSR | ||||
5 | out | TxD | TxD- | TxD- | TxD-/RxD- | |
6 | in | RxD | RxD+ | RxD+ | ||
7 | GND | GND | GND | GND | ||
8 | in | CTS | RxD- | RxD- | ||
9 | out | DTR | ||||
10 | Power out | Power out | Power out | Power out | ||
Optional Perle adapters for use with straight thru CAT5 cabling |
TCP |
---|
Using RAW TCP Sockets A raw TCP socket connection which can be initiated from the serial-Ethernet device or from the remote host/server. This can either be on a point to point or shared basis where a serial device can be shared amongst multiple devices. TCP sessions can be initiated either from the TCP server application or from thePerle IOLAN serial-Ethernet adapter. ![]() |
UDP |
Using Raw UDP Sockets For use with UDP based applications, Perle IOLANs can convert serial equipment data for transport across UDP packets either on a point to point basis or shared across multiple devices. ![]() |
Console Server |
Console Management For access to remote console ports on routers, switches,etc, Perle IOLAN’s enable administrators secure access to these RS232 ports via inband Reverse Telnet / SSH or out of band with dial-up modems. Perle IOLAN models with integrated modems are available. ![]() |
COM/TTY |
Connect Serial-based Applications with a COM/TTY Port Driver Serial ports can be connected to network servers or workstations running Perle's TruePort software operating as a virtual COM port. Sessions can be initiated either from the Perle IOLAN or from TruePort. ![]() |
Tunneling |
Serial Tunneling between two Serial Devices Serial Tunneling enables you to establish a link across Ethernet to a serial port on another IOLAN. Both IOLAN serial ports must be configured for Serial Tunneling (typically one serial port is configured as a Tunnel Server and the other serial port as a Tunnel Client). ![]() |
Virtual Modem |
Virtual Modem Enables the serial-Ethernet adapter to simulate a modem connection. When connected to the IOLAN and initiates a modem connection, the IOLAN starts up a TCP connection to another IOLAN serial-Ethernet adapter configured with a Virtual Modem serial port or to a host running a TCP application. ![]() |
